Specifications

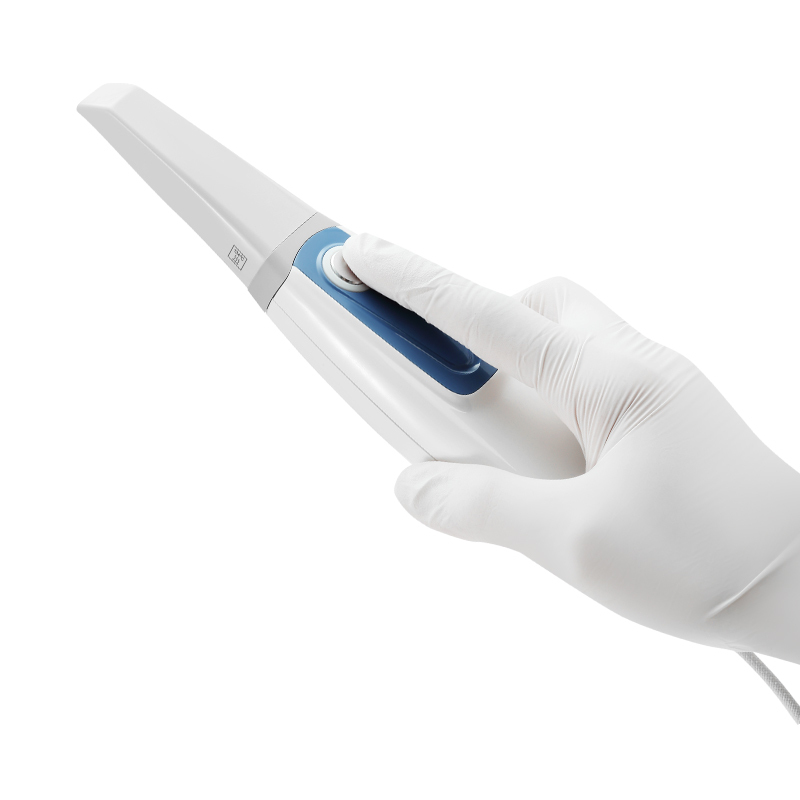

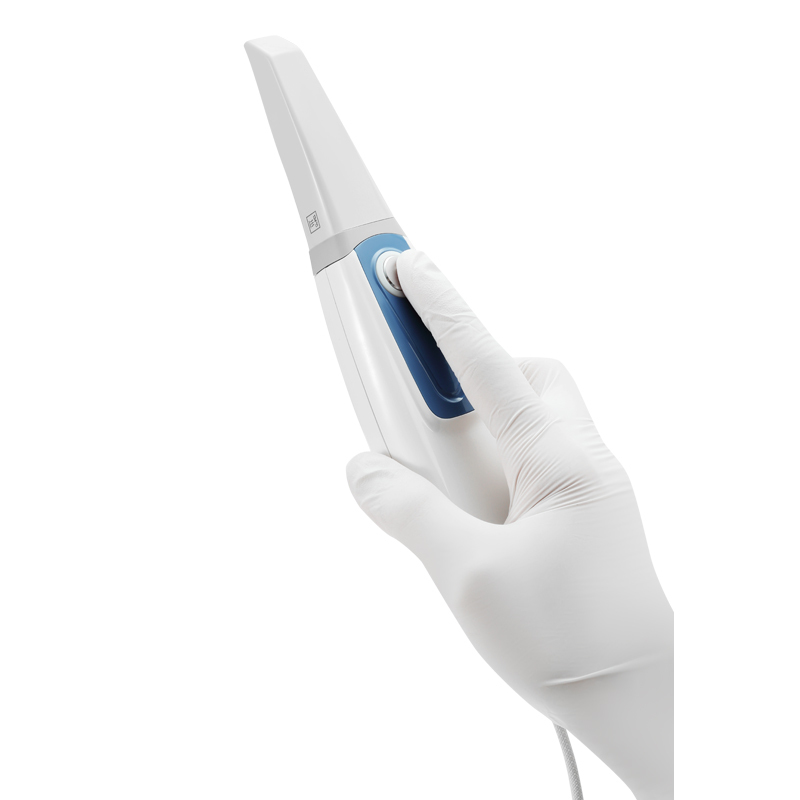

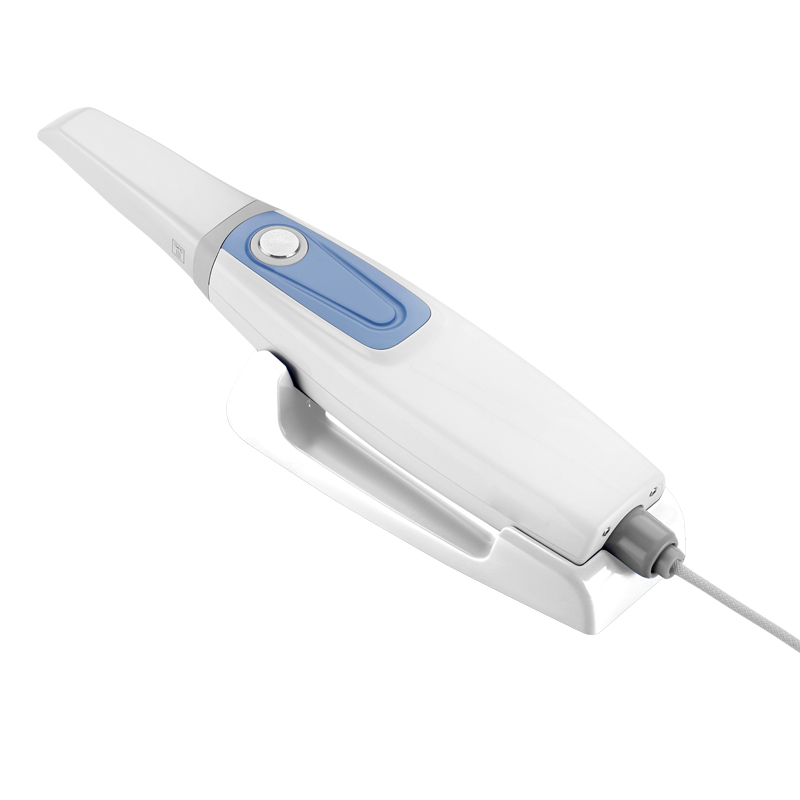

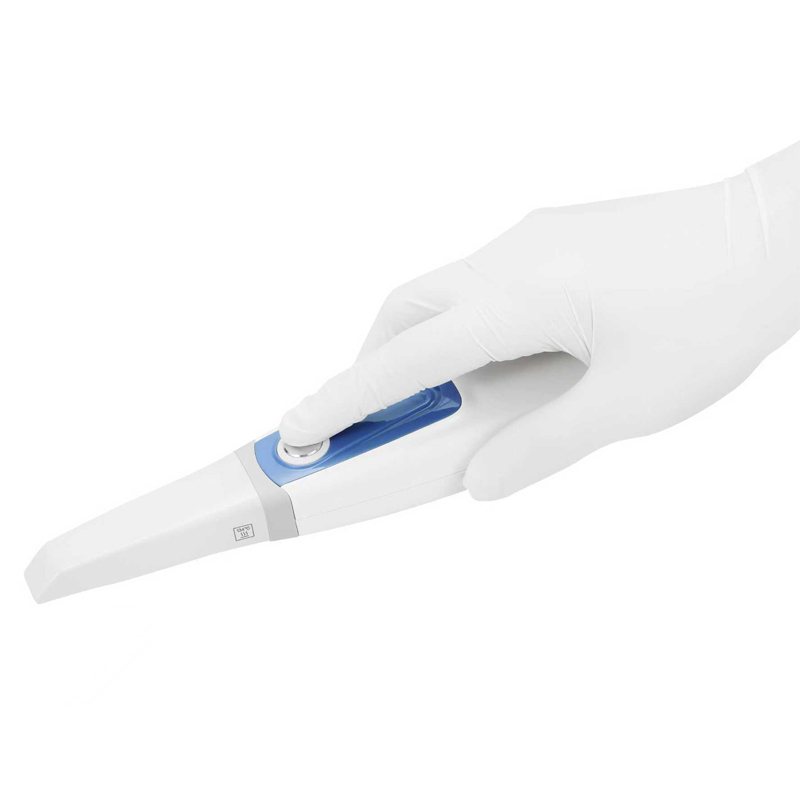

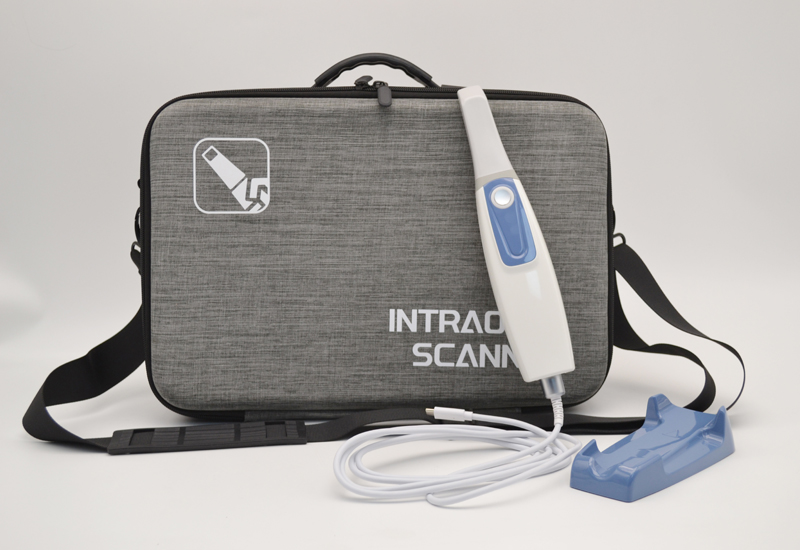

Handpiece:
Dimension (L x W x H): 240mmx49.5mmx30.5mm
Weight: 210g

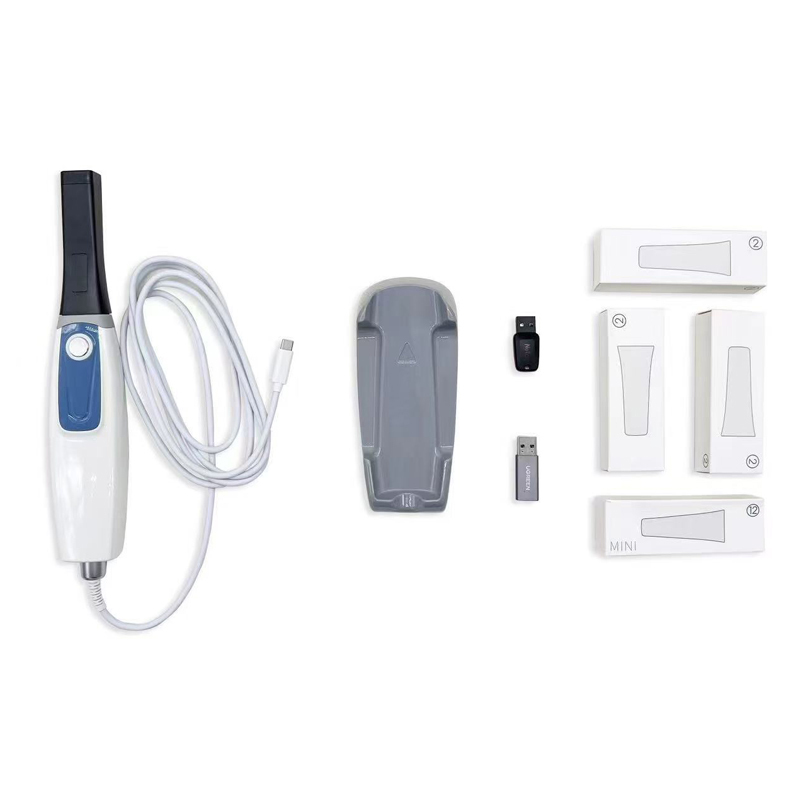

Tip:
Standard tip size: 79mmx19.7mmx15.8mm
Mini tip size: 80mmx16mmx11mm
Scan area (Standard): 15mmx15mm
Scan area (Mini): 12mmx12mm
Depth of field: 15mm
Autoclavable: Up to 100 times Autoclavable 121℃ 16mins I Autoclavable 134℃ 4mins
Accuracy:
Crown: <10µm
Full arch: <20µm
Scan Speed:
Single arch: 30s
Full arch with occlusion: 90s
Calibration: Calibration free
Output: STL, OBJ, PLY
Connectivity: USB 3.0
Multilingual System: Chinese, English, French, Spanish, Russian, Portuguese, Italian, Greek, Polish, Romanian, Japanese and Korean.
Recommended System Configuration
Laptop recommended CPU: Intel Core i7-11700H
Desktop recommended CPU: Intel Core i7-11700
RAM: 16GB or higher
Graphic Card (GPU): NVIDIA GeForce 3060 or above, Above 6G memory (Not supporting AMD graphics cards)
Hard Disk Driver Display Resolution: 256GBSSD or above
Display Resolution: 1920x1080, 60Hz
System: Windows 10/11 Pro/Corporate Edition(64.bit)
IPO port: USB 3.0 (or higher) port
Power Consumption: 25 V/A
