Technical Data
Power supply: 4.5V, 3 pcs of AAA batteries
Package size: 124mmx116mmx78mm
Electrical safety class: Class ll
Package weight: Approx.335g
Accuracy: 99%
Operating Conditions
Use: in enclosed spaces
Relative humidity: <80%
Ambient temperature: 5°C~40°C
Operating altitude: 2000m above sea level
Atmospheric pressure: 70kPa~106kPa
Transport and Storage Conditions
Ambient temperature: -20°C~+55°C
Relative humidity: 20%-80%
Atmospheric pressure:70kPa~106kP
Instruction

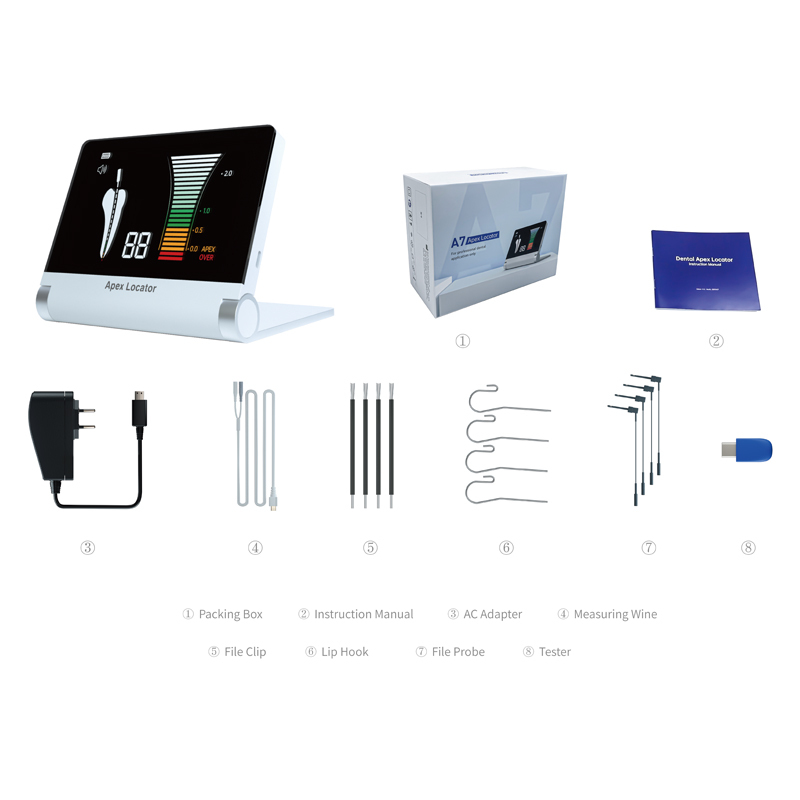

1. Clip the file clip to the metal shaft the file. Press in direction of arrow and clip file, then release to finish installation.
2. Connect the lip hook to the patient's lower lip and the file clip to the file that is inserted into the treated root canal.

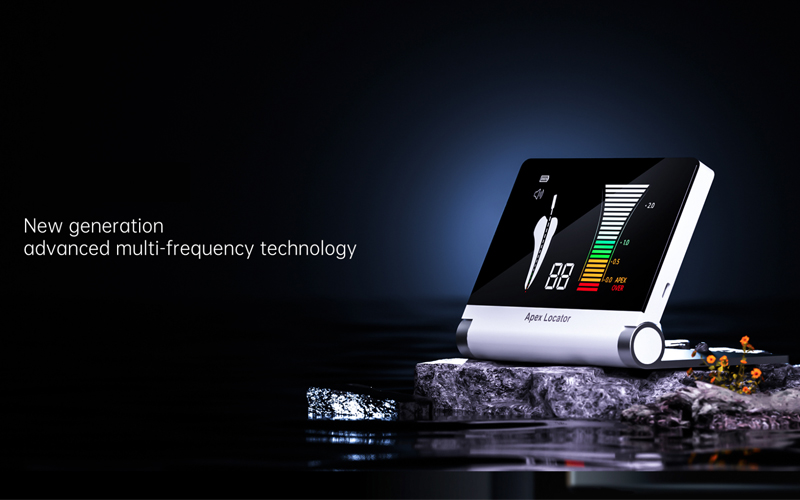

The progression of the file into the canal in reference to the apex will be indicated on the display.

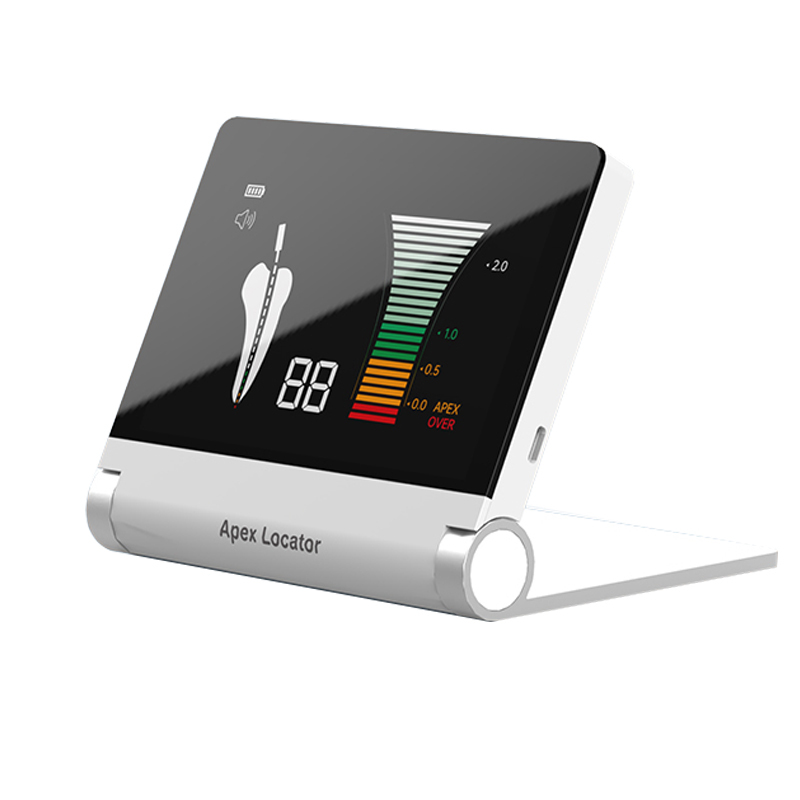

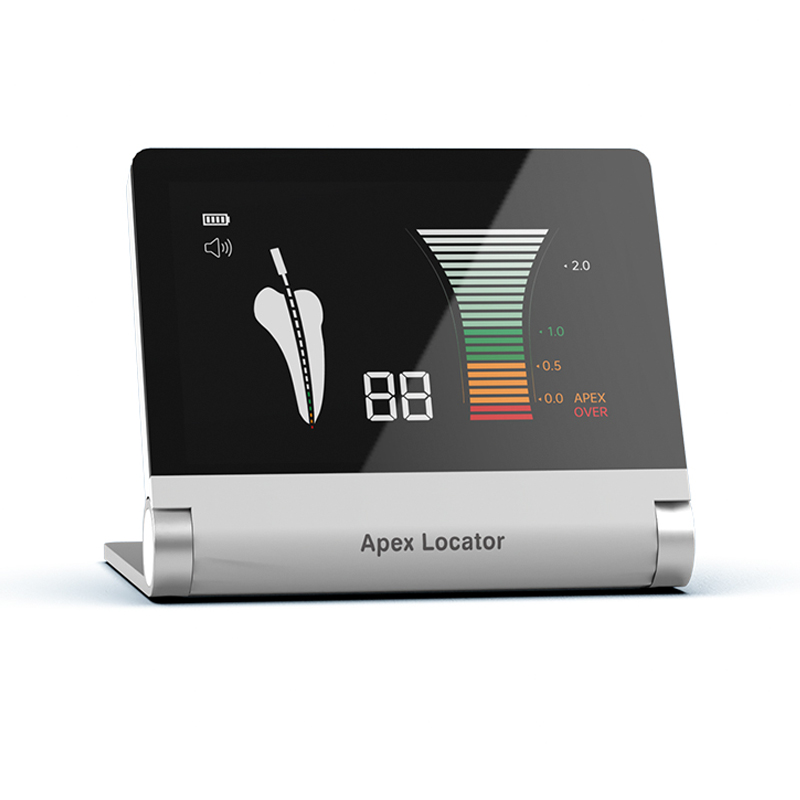

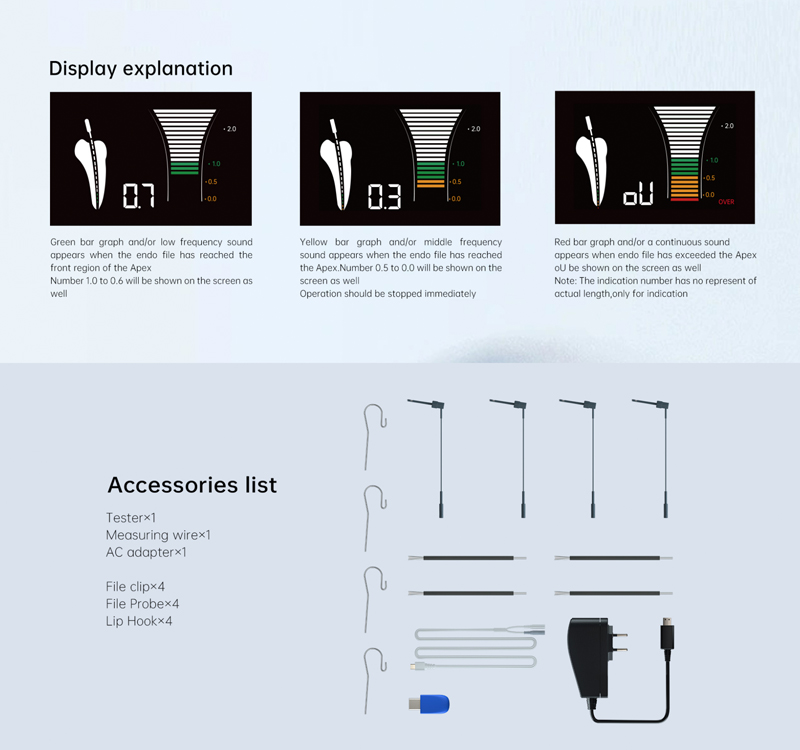

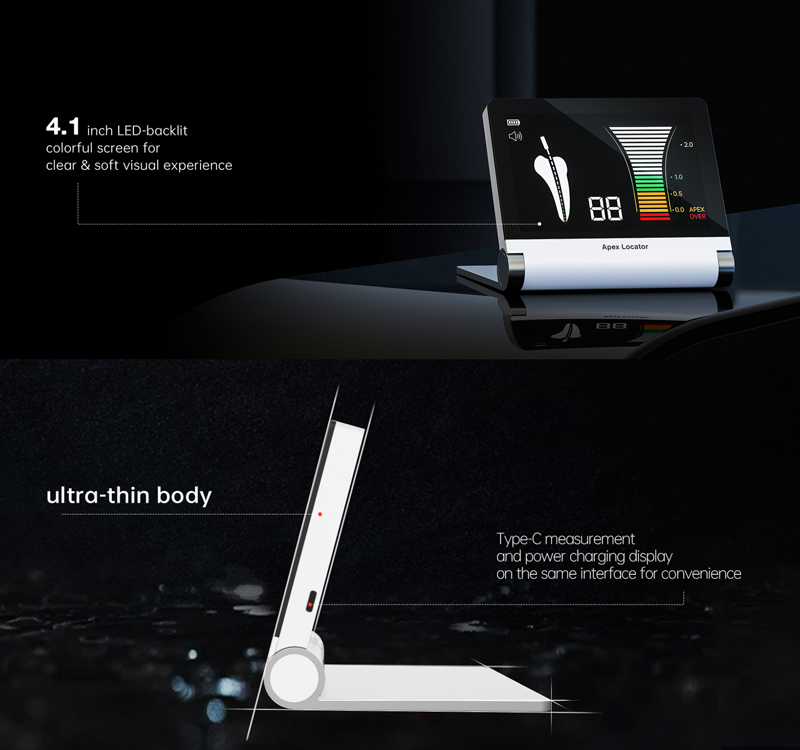

3. Observing the strips and numbers indicated on the display while moving the file into the root canal slowly.
The numbers indicates the remaining number of strips before reaching the major apical foramen.
Strips become green into the apical zone. The minor and major apical foramens are separated by 7 strips form 0.0 to 0.6, "0.0" will display when the major apical foramen is reached and the beep will sound continuously.
4. When the file tip over the apex, strips become red, number becomes negative and the label "APEX" Iblinks with a rapid beep.
