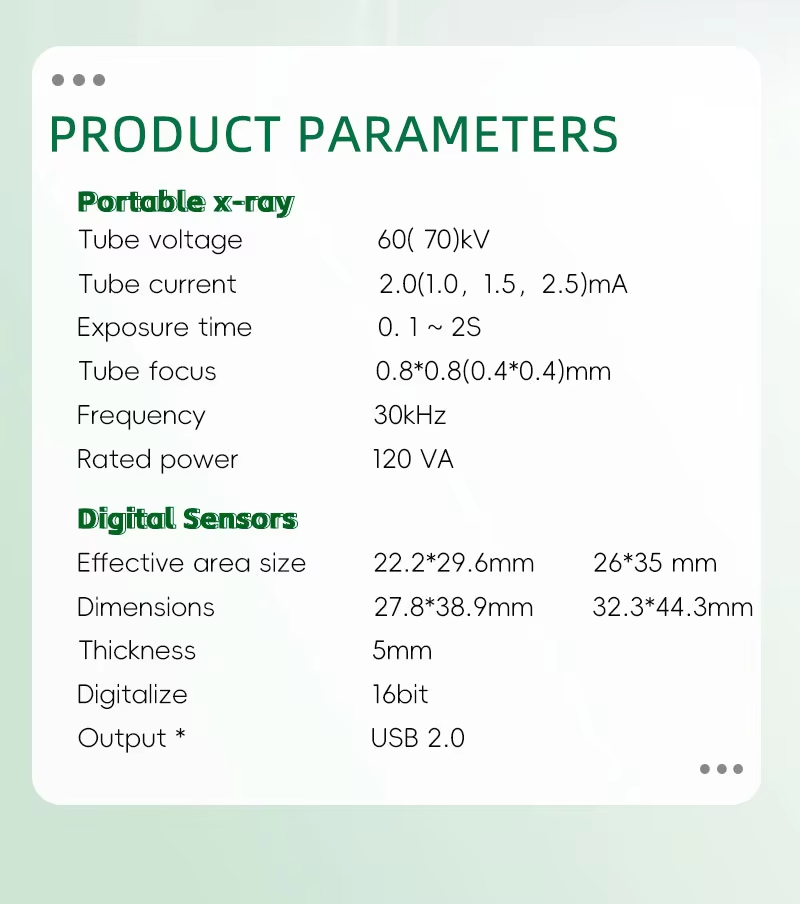

Technical Data
Tube voltage: 60KV
Tube current: 2mA
Exposure time: 0.1-2.0S
Frequency: 30kHz
Rate power: 120VA
Distance from skin to cone: 105mm
Tube focus: 0.8mmx0.8mm
Battery: DC14.8V 1600mAh
Charger input voltage: AC100V-240V+10%
Output voltage: DC16.8V
Ambient temperature: 5℃~40℃
Relative temperature: <75%RH
Sensor Technical Data
Detector Technology: APS CMOS
Pixel Size: 18.5μm
Theoretical Resolution: 27lp/mm
True Resolution: CsI:≥14 lp/mm
Pixel Matrix: 1200*1600(Size 1); 1402*1888(Size 2)
Active Area(mm): 29.6x22.2(Size 1); 35x26(Size 2)
Mechanical Size(mm): 39x28.5x6(Size 1); 44.5x33.0x6(Size 2)
Data interface: USB
Digitization: 12/14/16 bit
Imaging Time: 3-4s
Feature

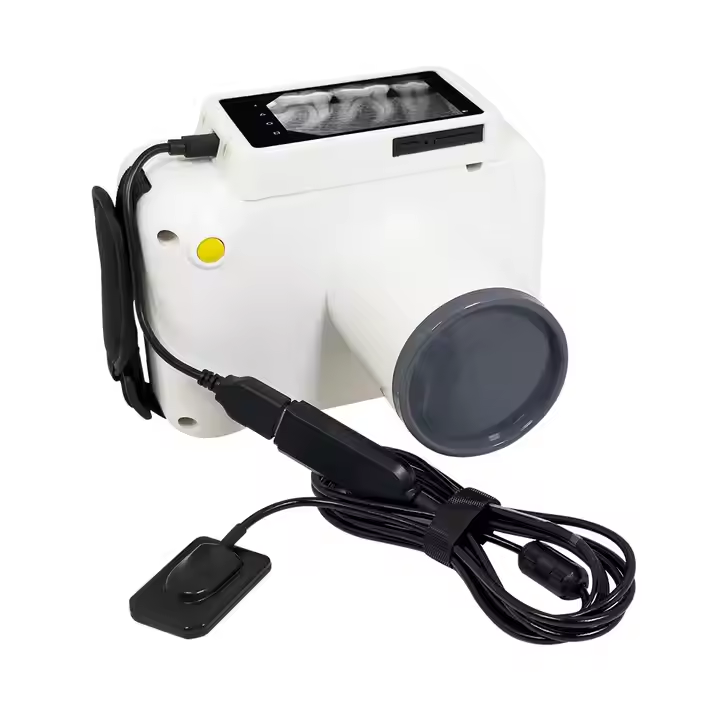

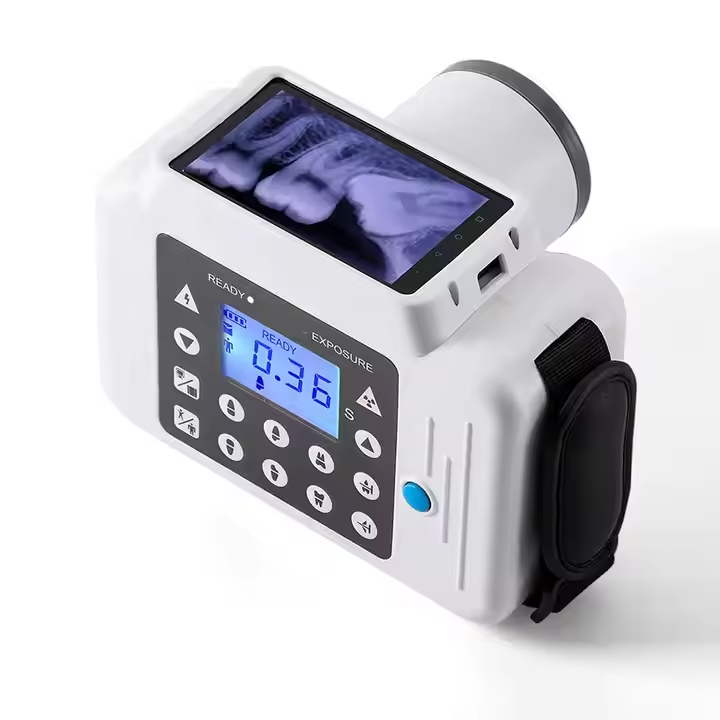

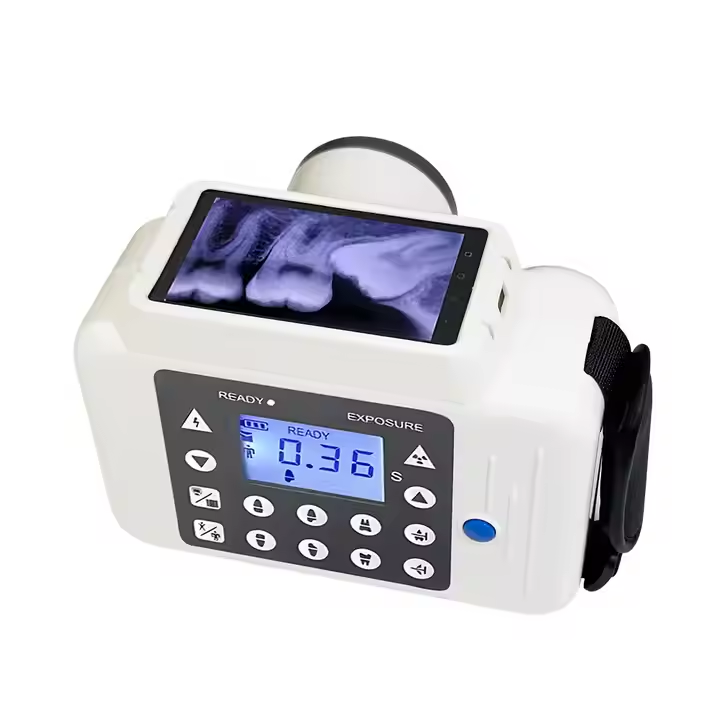

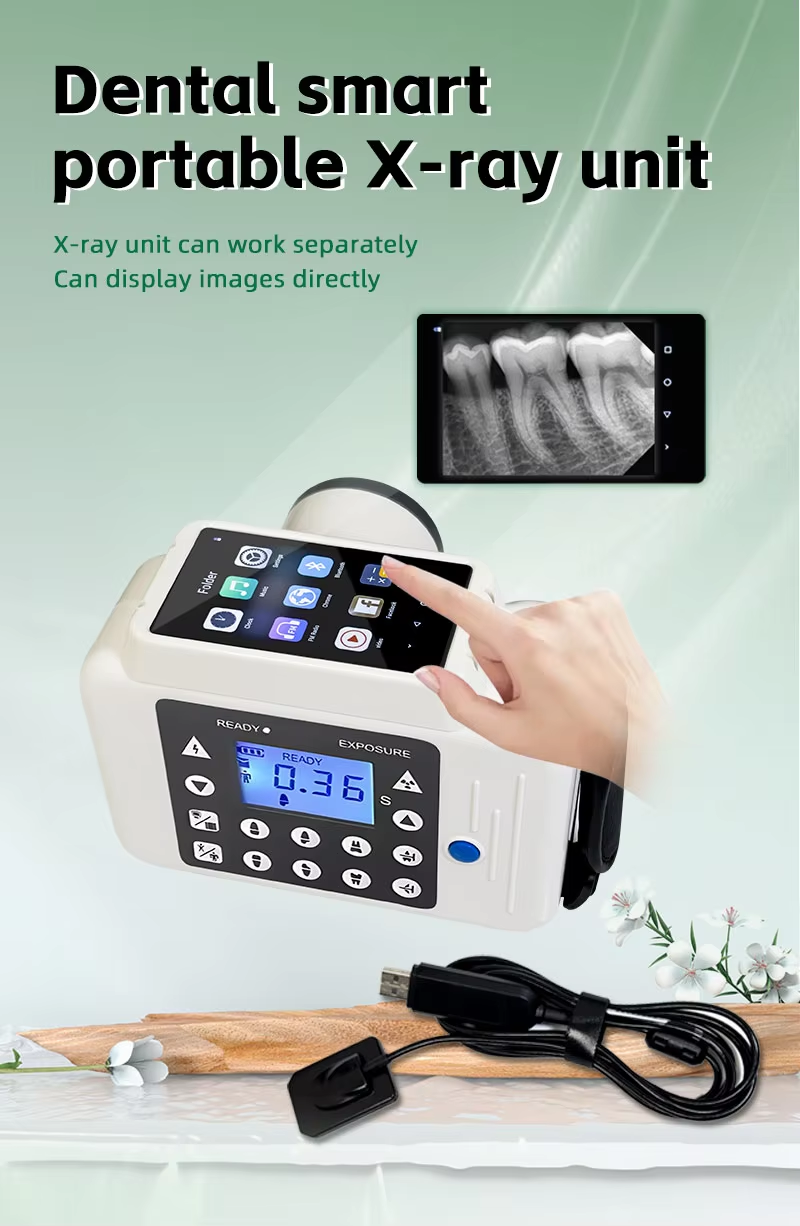

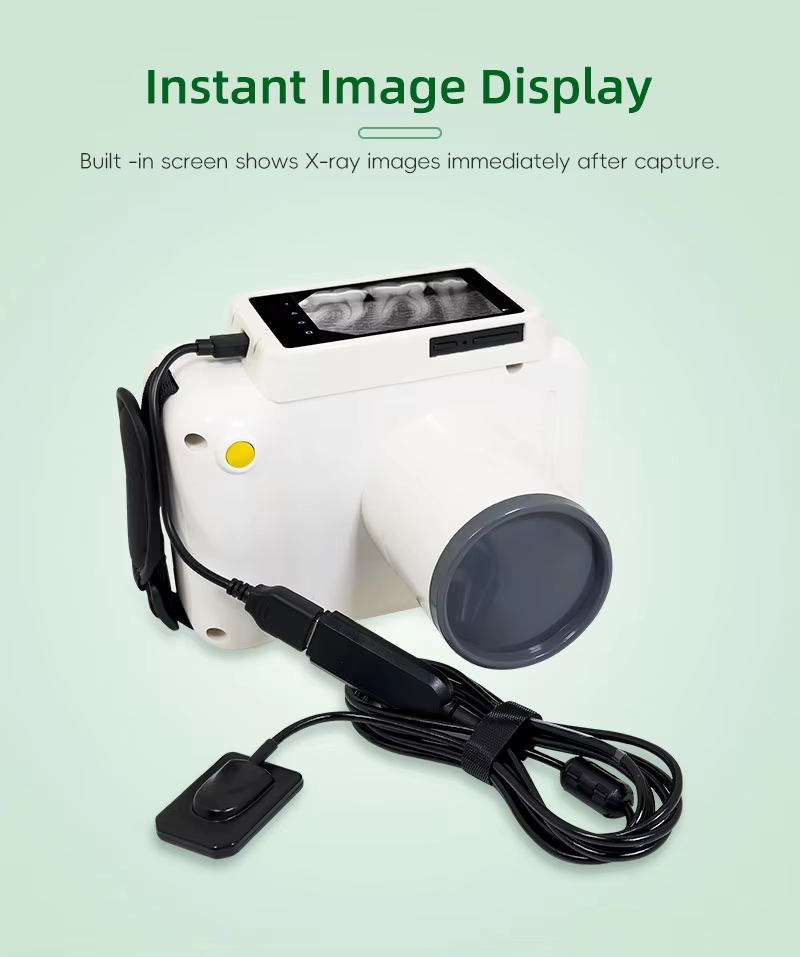

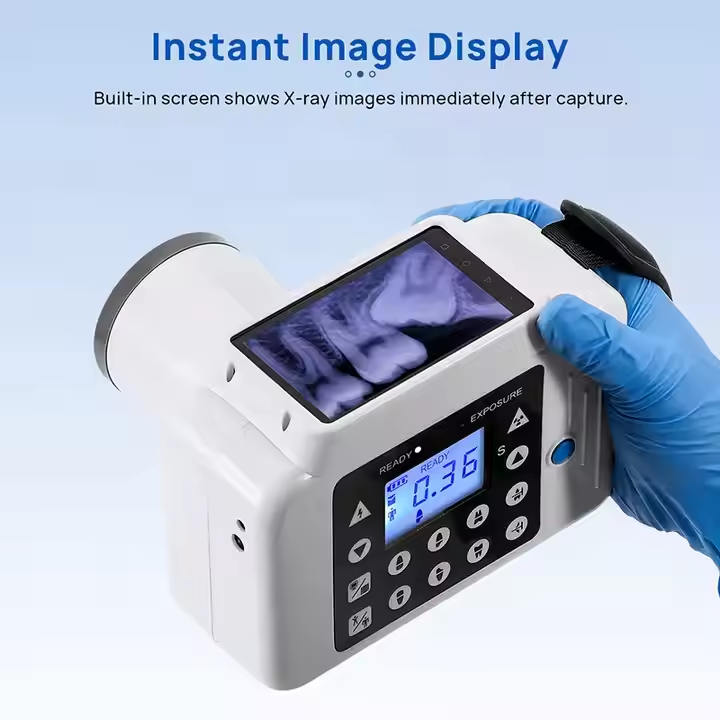

1. Instant Image Display: When connected to our sensors, built-in screen shows X-ray images immediately after capture.
2. Independent Operation: Functions seamlessly even without the sensor connected. Compatible with digital sensors, X-ray film, and image plate scanners.
3. Flexible Sensor Use: Sensor can be paired with other X-ray machines, allowing versatile integration across different setups.
4. Enhanced Workflow: Streamlined design improves efficiency and adapts to various clinical needs.

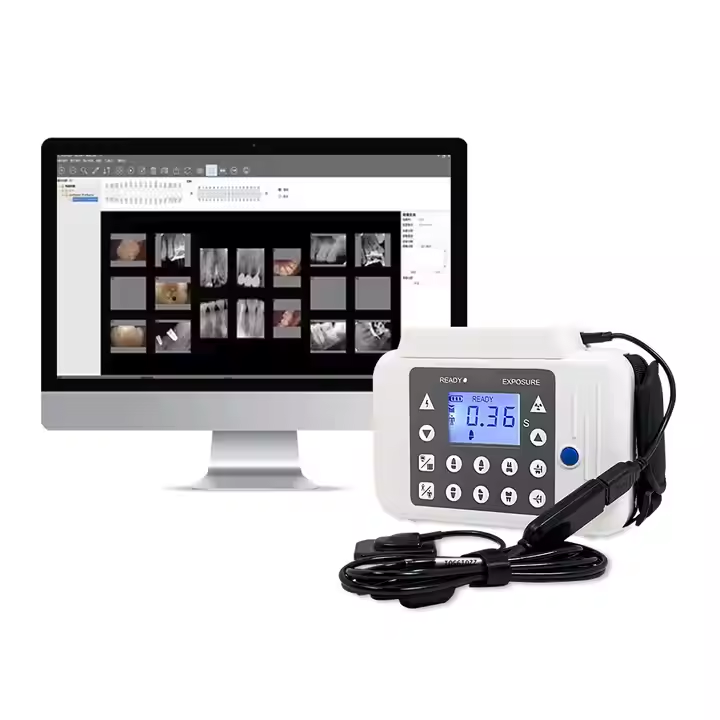

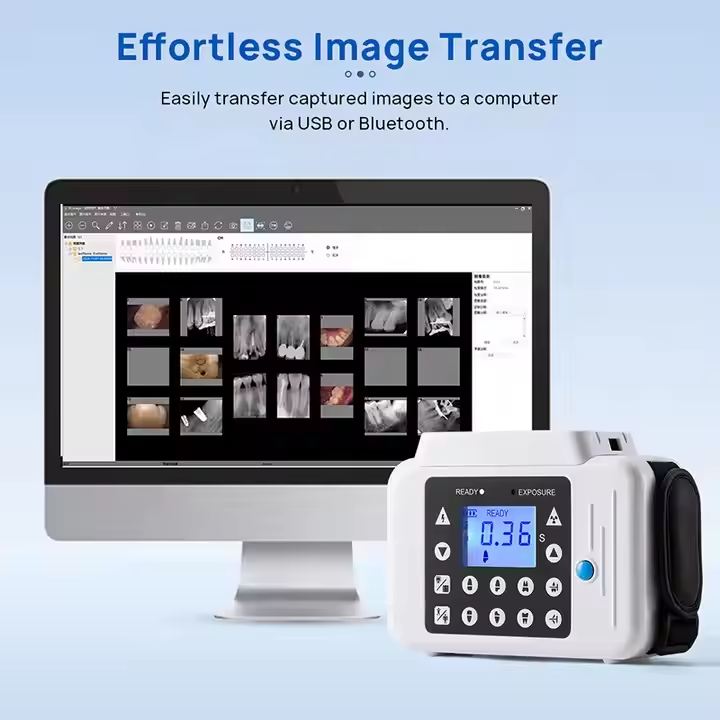

5. Effortless Image Transfer: Easily transfer captured images to a computer via USB or Bluetooth.

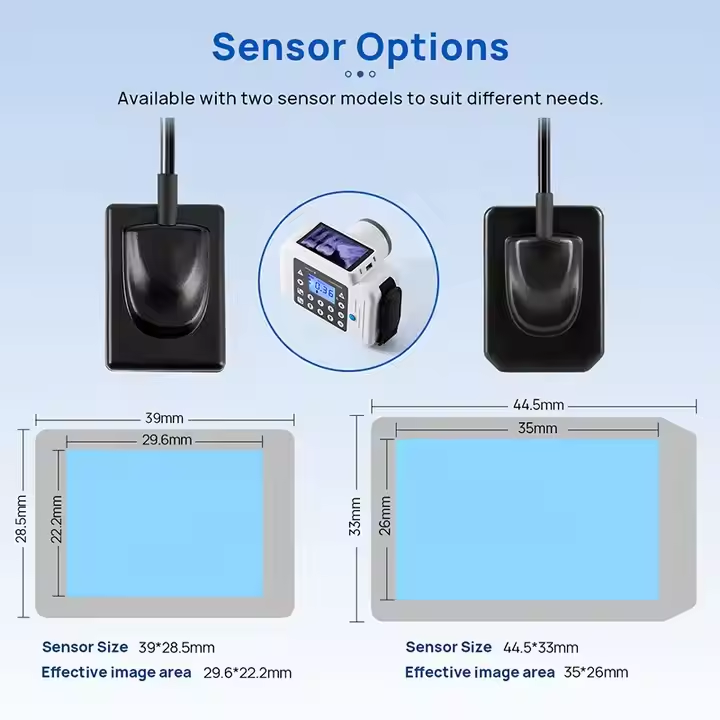

6. Sensor Options: You can choose one of the two sensor models to suit different needs.

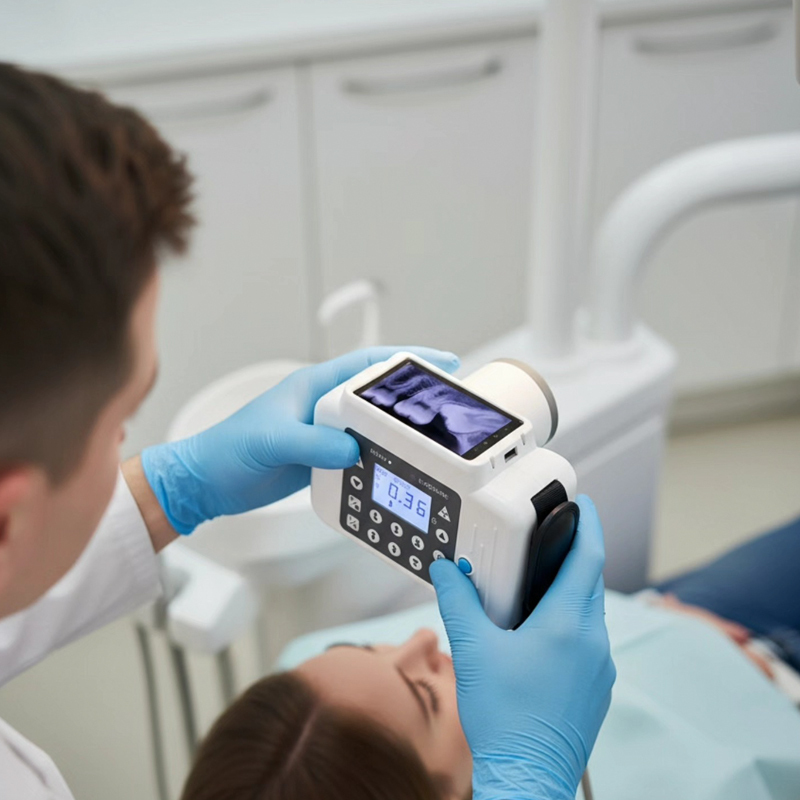

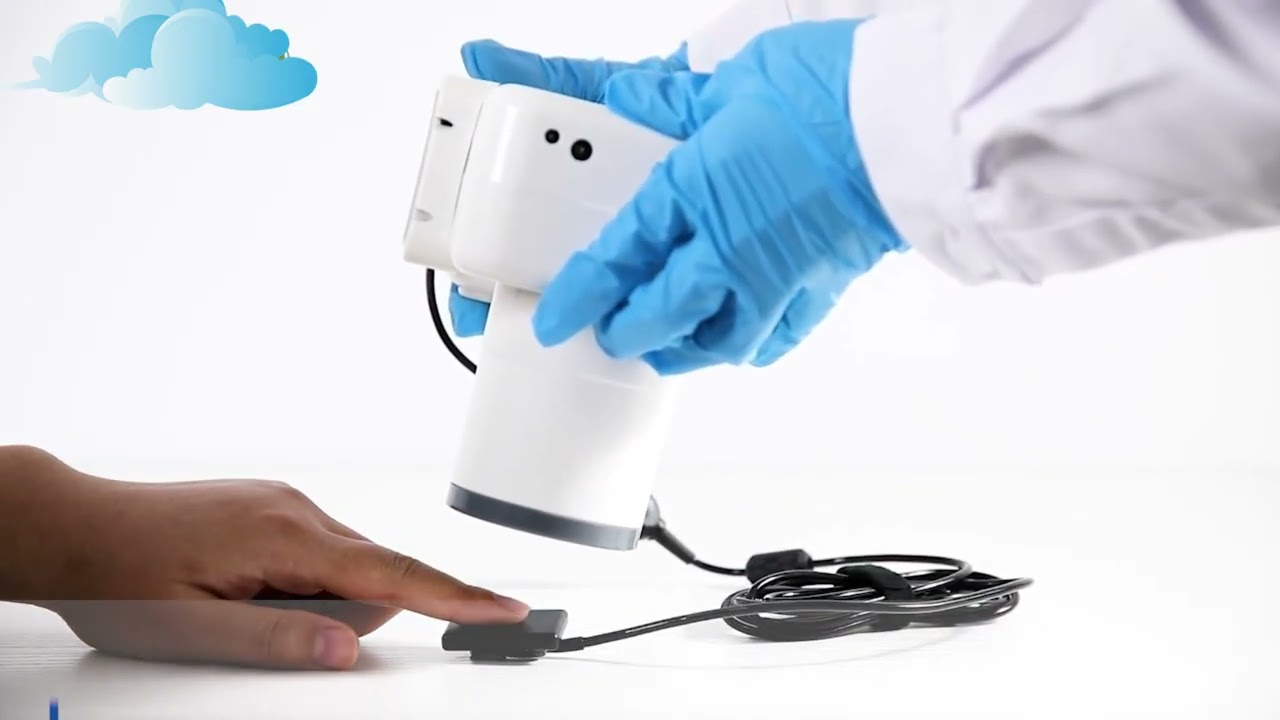

7. Handheld Design: Easy-to-grip, portable X-ray machine for convenient use and mobility.

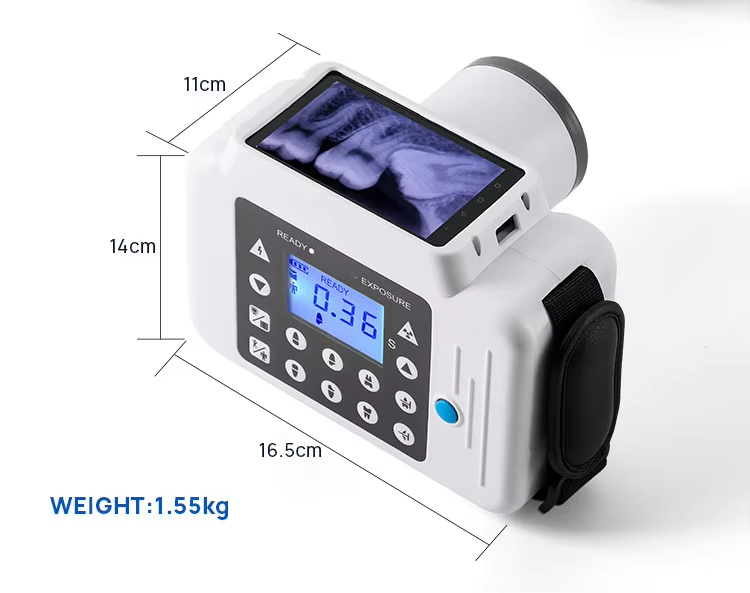

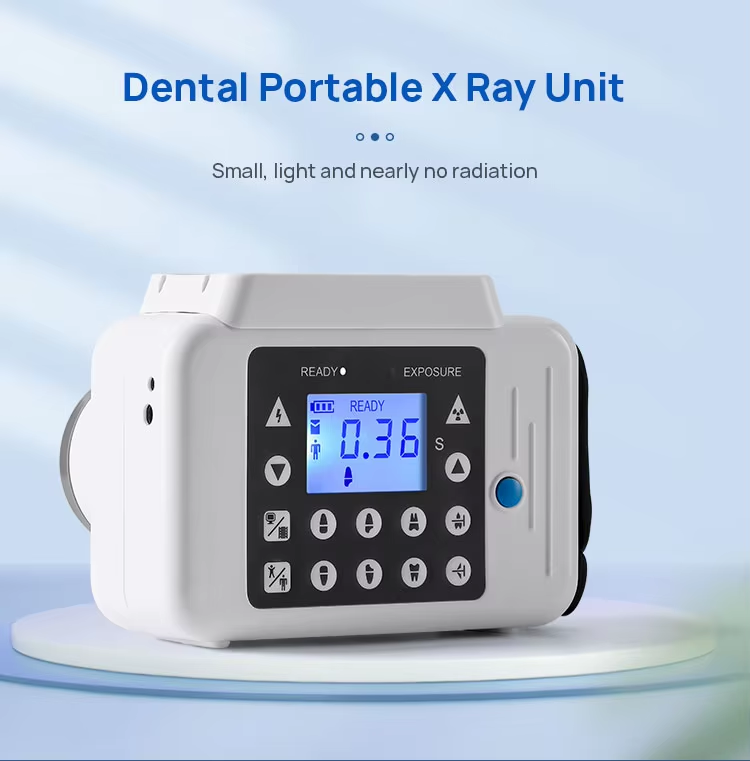

8. The body is small, light in weight, and the radiation leakage is less than 20μgy/h.
9. It has excellent image quality, portable storage, save more space.
10. It uses high frequency and DC international power supply.
11. All of the components installed in the central PC board concentrated. Shock, set-up, electron tubes, all of them are insulation vacuum, sealed stereotype protection.
12. Different exposure times are preset for adults and children.
13. The battery is durable, it can take about 4 hundred images after fully charged.
