Technical Data
Tube voltage: 60KV
Tube current: 2.0MA
Exposure time: 0.1--2.0s
Frequency: 30KHz
Rate power: 120VA
Distance from skin to cone: 118mm
Tube focus: 0.4mm x 0.4mm
Battery: DC 1550mAh
Charger input voltage: AC100V-240V士10%
Output voltage: DC14.8~16.8V
Ambient temperature: 5℃~40℃
Relative temperature: <75%RH
Net weight: 1.9KG
Gross weight: 4.5KG
Size: 168mm*158mm*130mm
Package size: 365mm*320mm*245mm
Feature

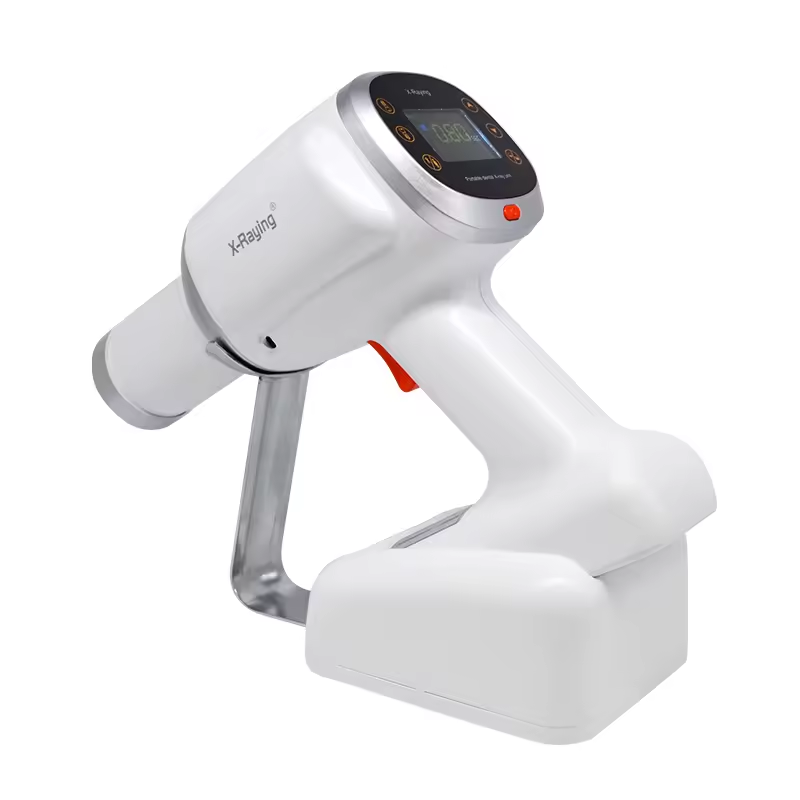

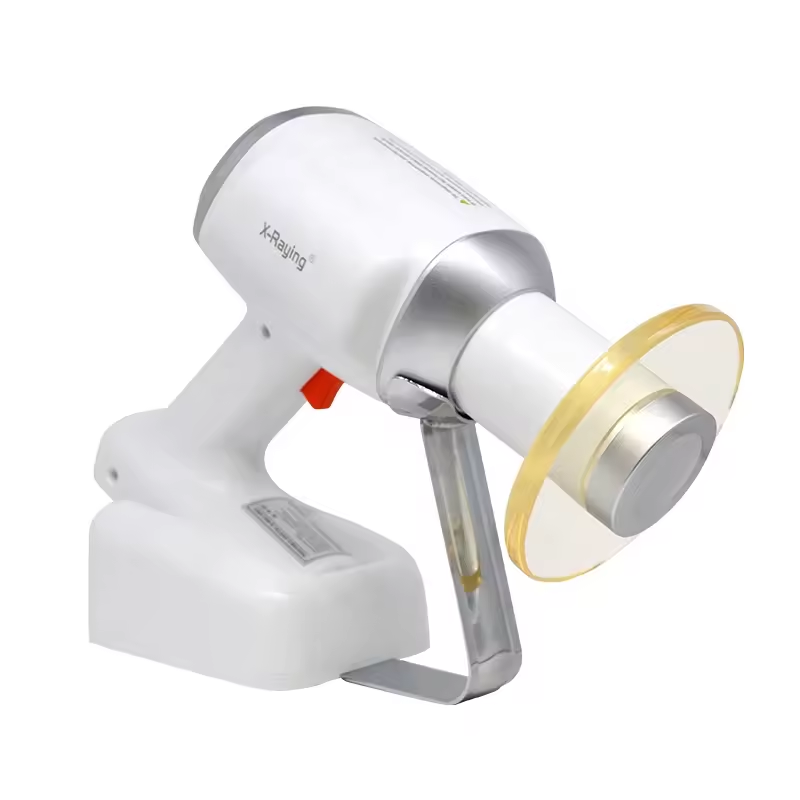

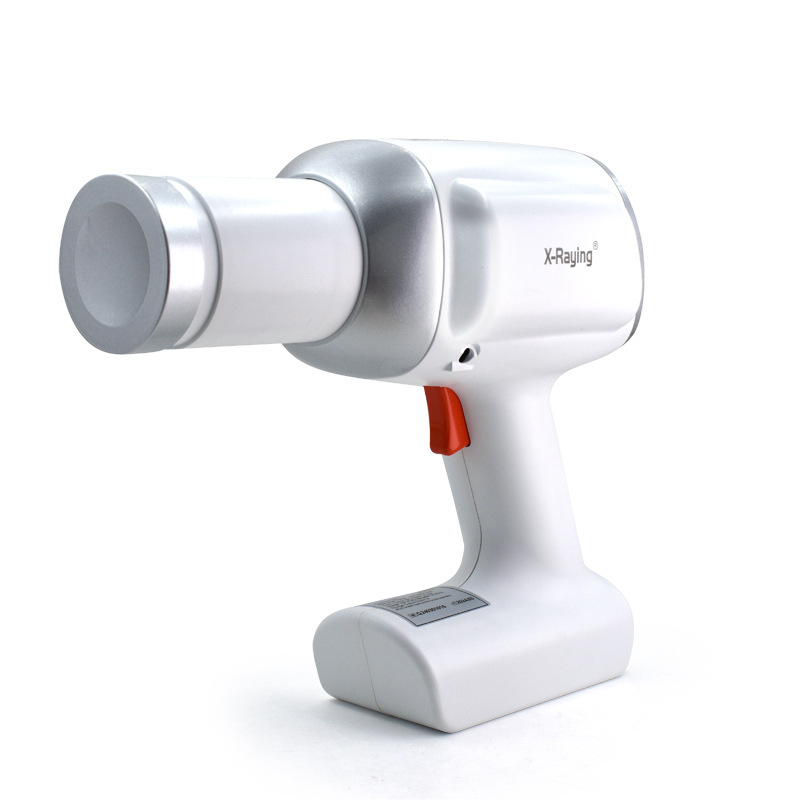

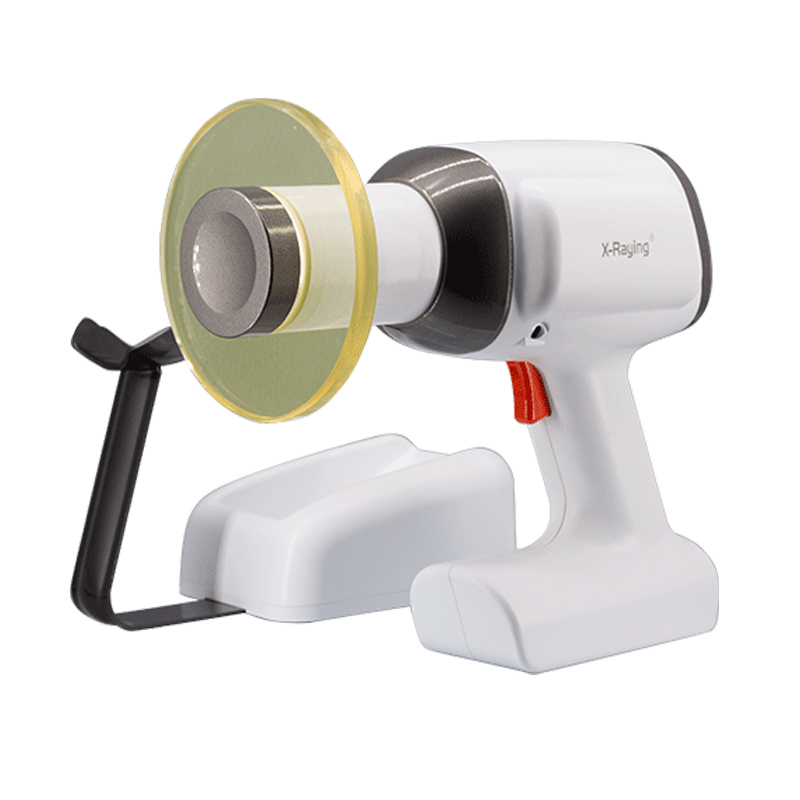

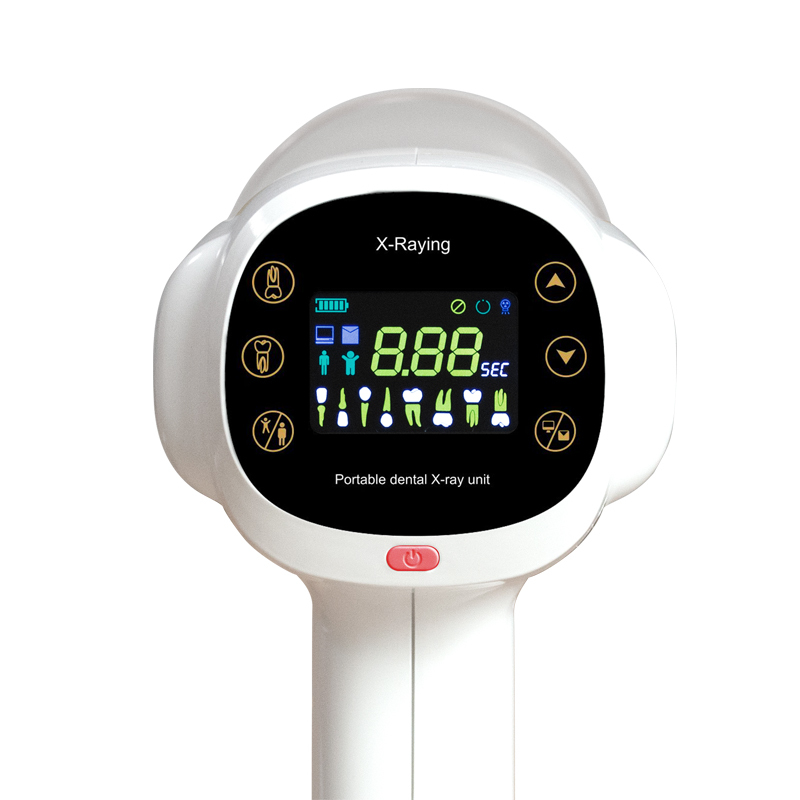

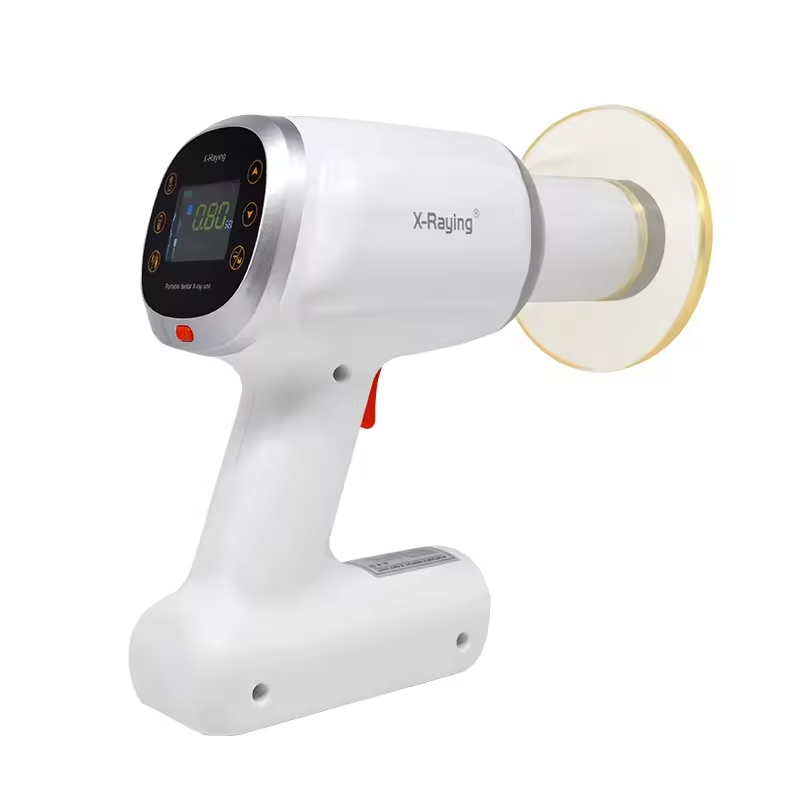

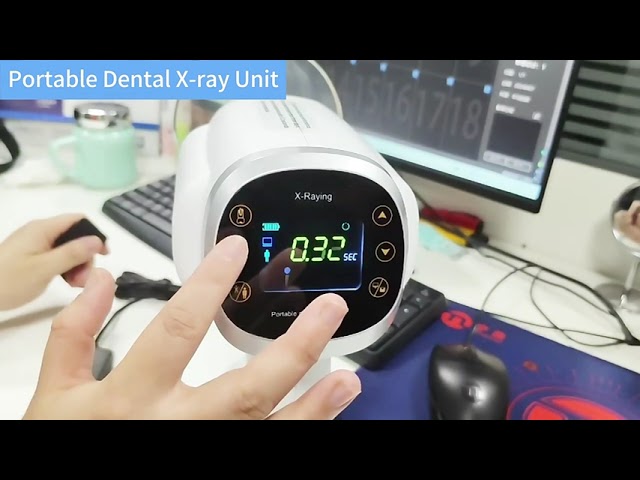

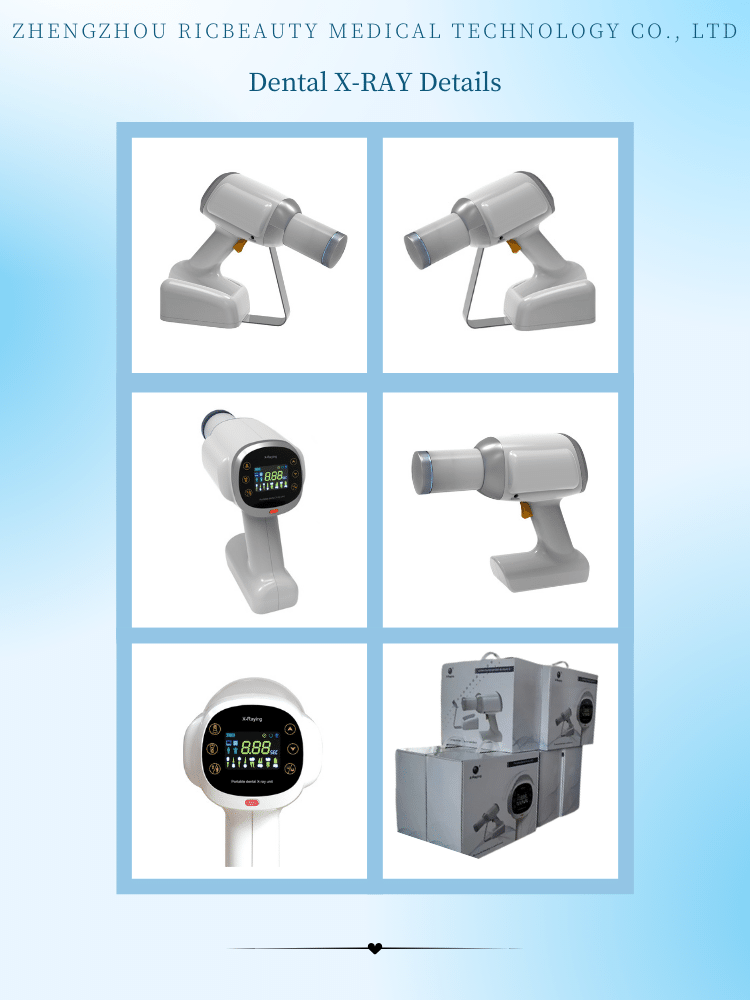

This portable dental x-ray unit is high frequency machine. The body is small, light weight and nearly no radiation. It has excellent image quality, portable storage, save more space. It uses high frequency and DC international power supply. All of the components installed in the central PC board concentrated. Shock, set-up, electron tubes, all of them are insulation vacuum, sealed stereotype protection. There are also manual buttons installed on the surface of shell, as well as batteries and charges. This unit mainly suitable for oral root depth and so on, is indispensable in daily life clinic equipment, especially for dental implant surgery. It also can connect with sensor, is great convenience.
