Technical Data
Input voltage: AC110-220Vm50-60Hz
Battery voltage: 3.7-4.2V
Wavelength: 420-480nm
Illumination: 1200-1500mw/cm²
Temperature: -10-+70℃
Humidity: ≤95%RH
Pressure: 70-106Kpa
Feature

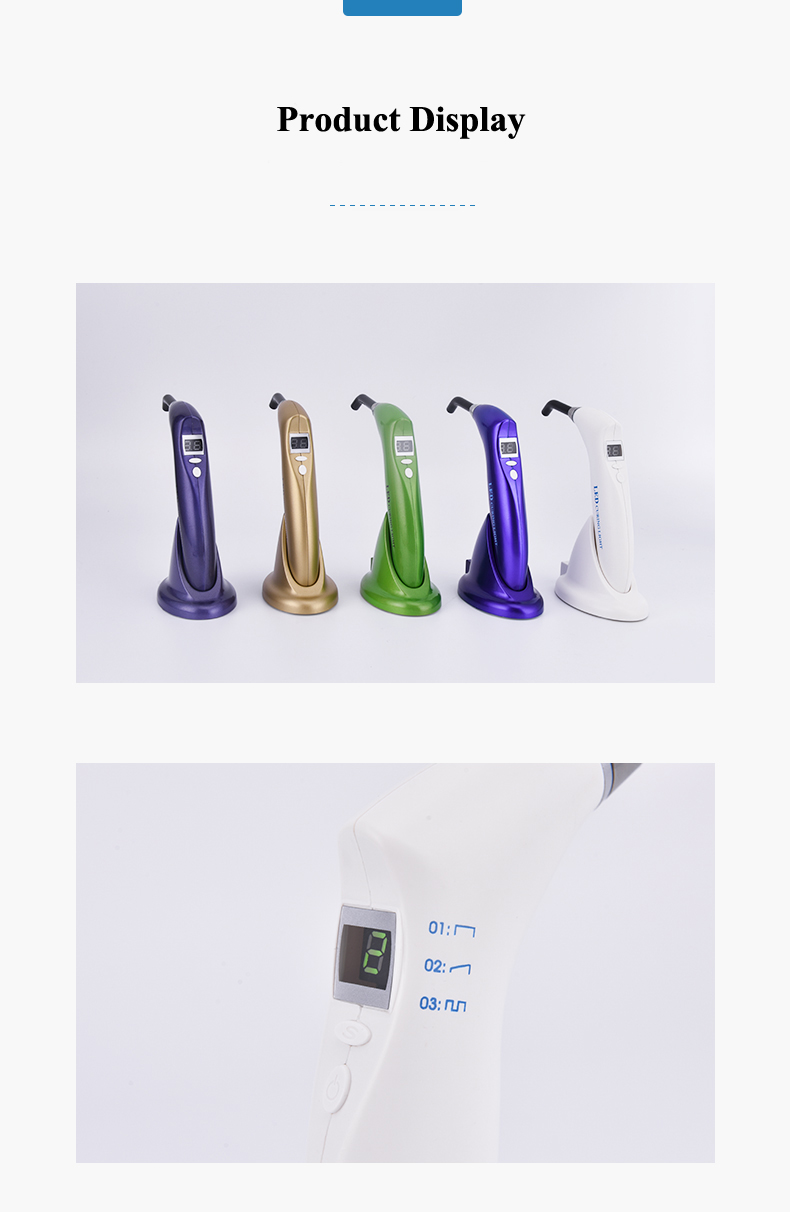

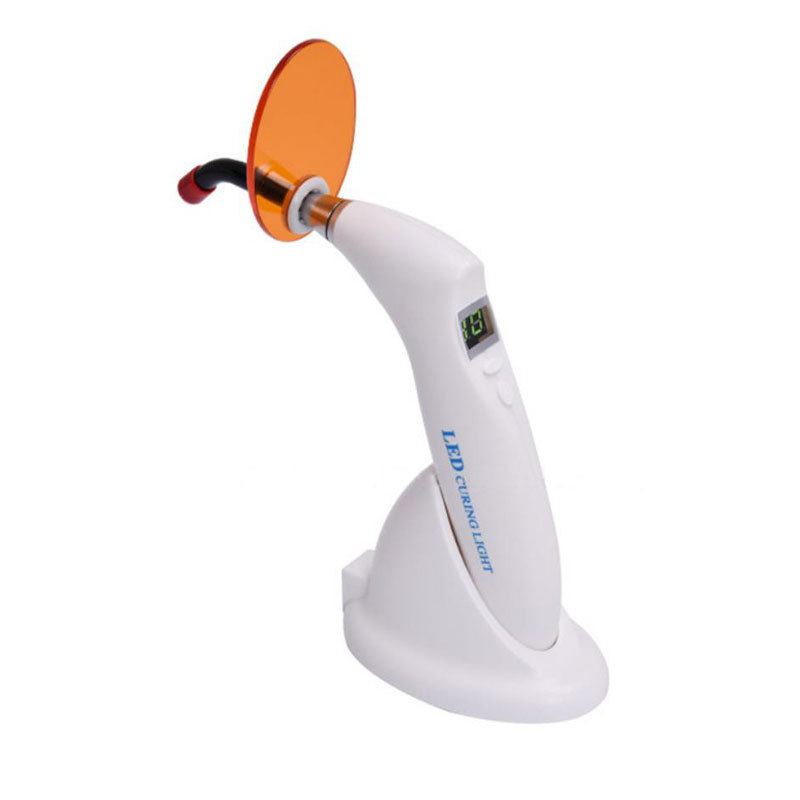

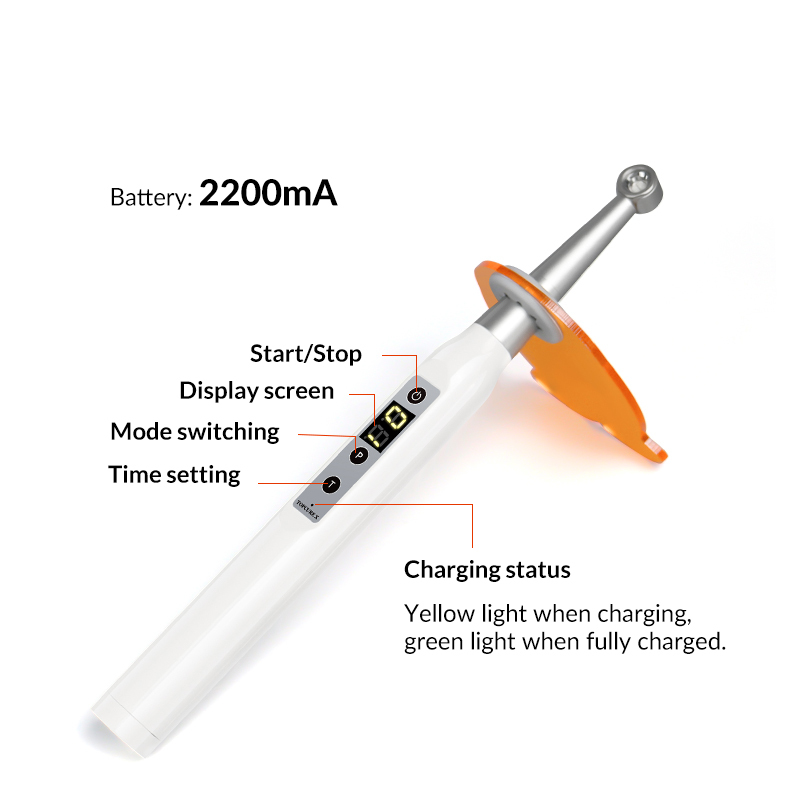

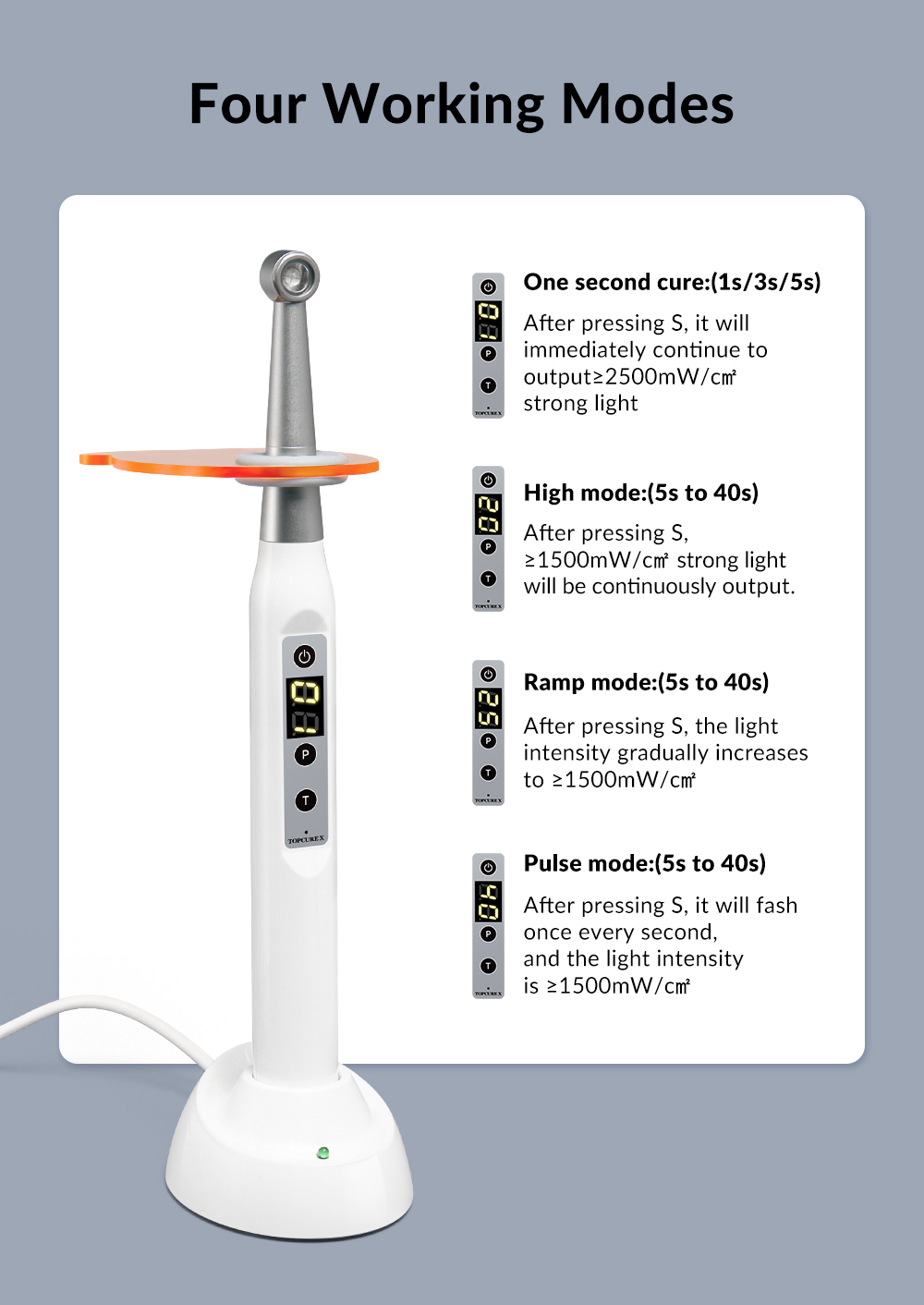

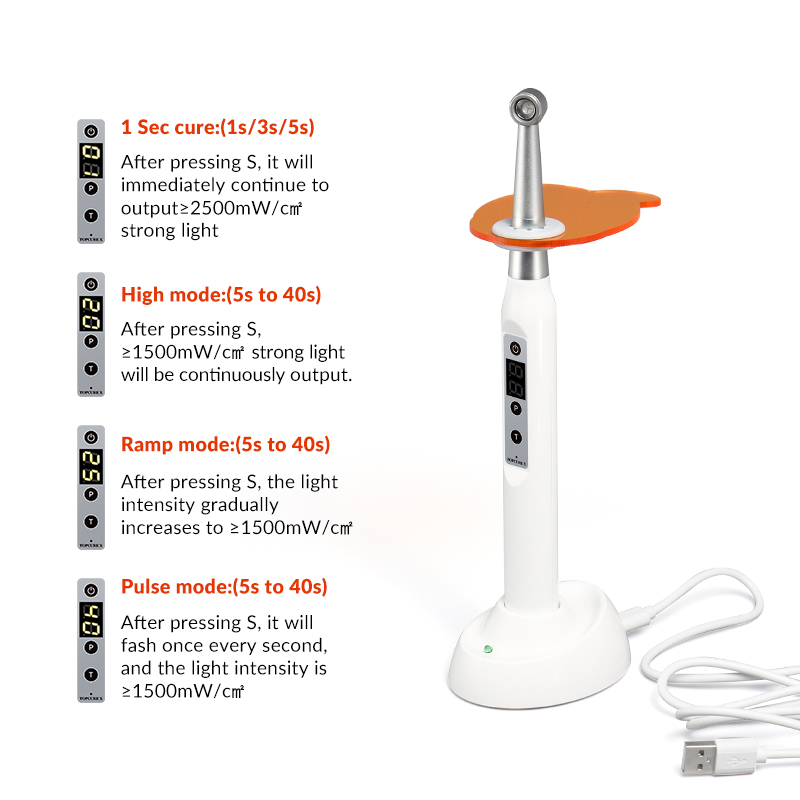

The battery, buzzer heard soon as the short-ming, digital display tube display 20, that curing the default current working time of 20 seconds, such as working time can be adjusted to adjust the time adjustment key, the machine 05-40 seconds of working time available(per transfer short-ming soon as a buzzer); the default operating mode for the light pattern, such as the need to adjust the model of light curing modes keys can be adjusted, the machine a light, strong, and pulse were getting three models to choose from(each tune short-ming soon as a buzzer). After the completion of curing can start to start the work starts soon as the buzzer short-ming, Work, the digital display tubes start from the current working time countdown display every 5 seconds short Ming soon as the buzzer until the end of work, digital display back to the current working time in seconds, such as the need to close the light-cured and light-cured not to the end of working hours, press the start button closure.
If the battery is connected and the light curing unit is turned off(no digital tube display), press the start button, light curing machine into standby you can use the above method of light curing unit.
Light curing unit is completed, if no operation within 120 seconds, the buzzer blew soon as light curing machine, automatically turned off to save battery power. The light curing machine state power organs is very small(less than 3uA), the battery is fully charged, the case is not in use can be maintained for more than four months.
