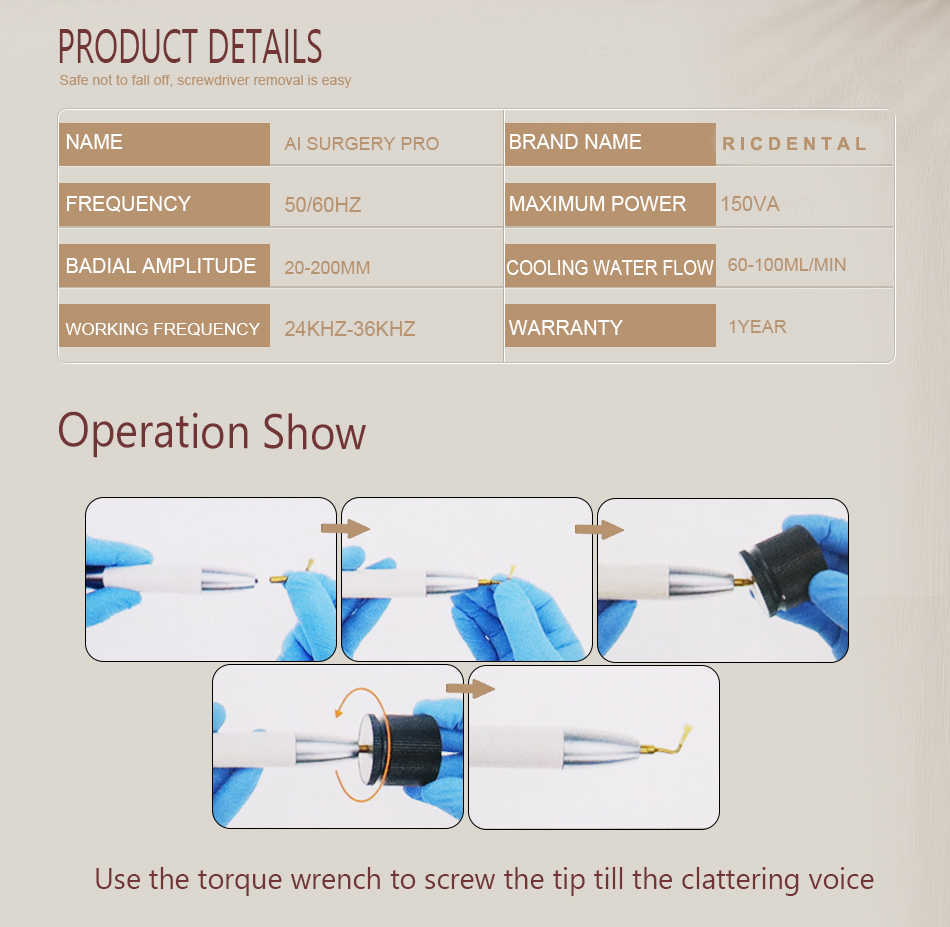

Technical Data

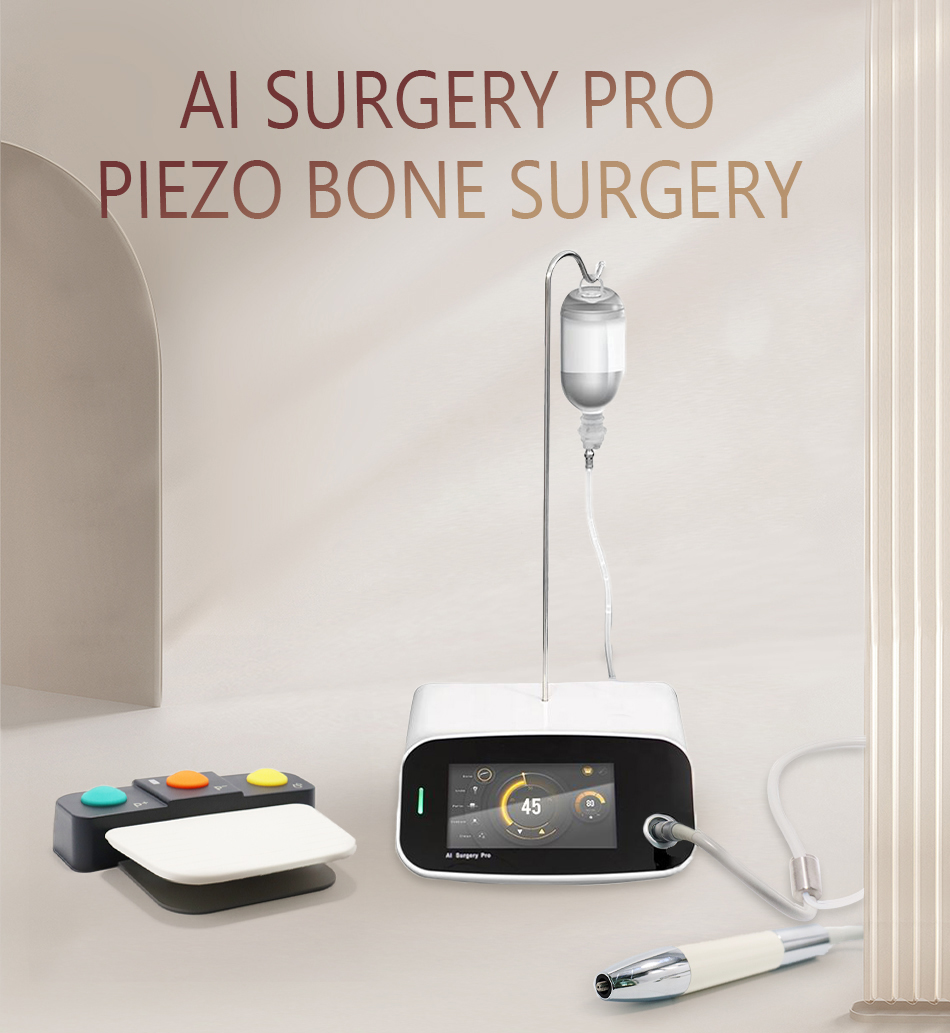

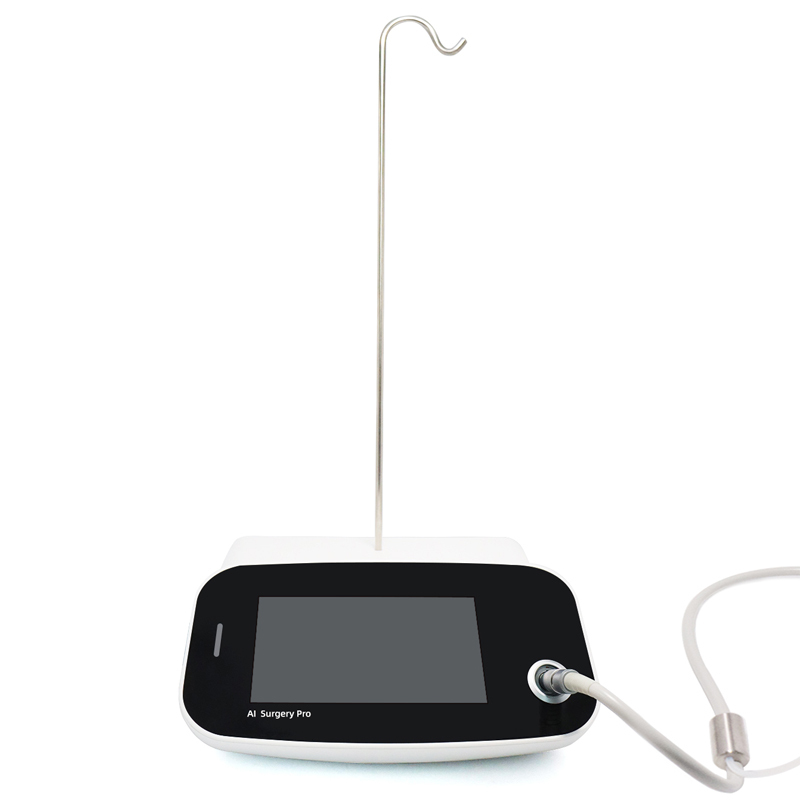

Machine model: AI Surgery Pro

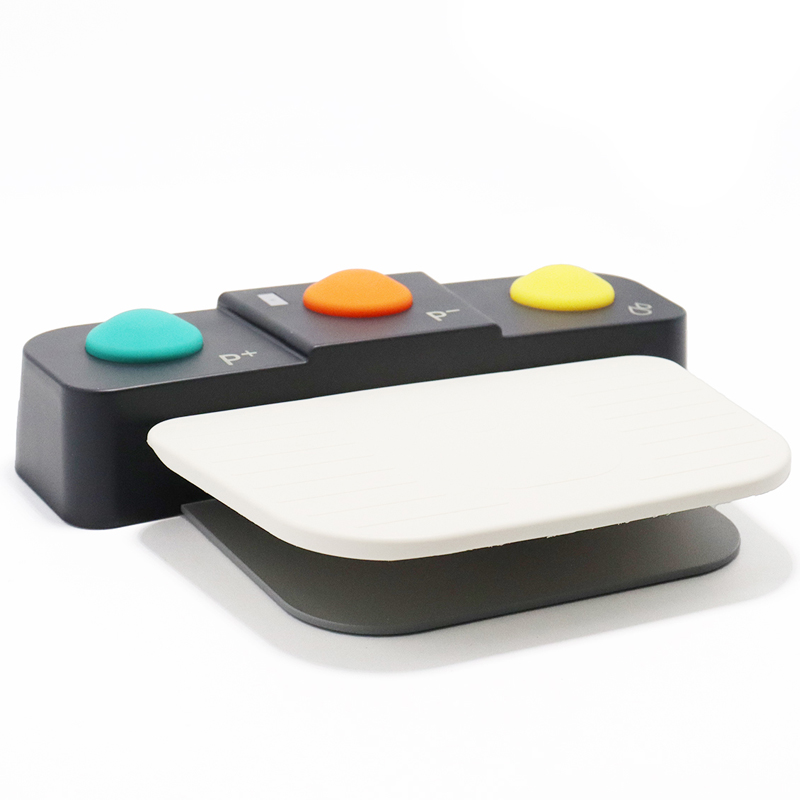

According to EN60529: IPX1(device & foot switch)
Power-supply voltage: ~100V-240V 50Hz/60Hz 150VA
Fuses: 2xF10A 250V
Working frequency: 24kHz～36kHz
Water Flow: 60~100ml/min
Water Applied parts: handpiece and tips
Protection systems and tripping time of the APC
No handpiece connected: 8ms
Cord interrupted: 8ms
Tips broken or not correctly tightened: <400ms
Protection by discharge to earth: 8ms
Opera on environment
Environment temperature: +5°C ~ +40°C
Relative humidity: 30% ~ 75%
Atmosphere pressure: 70kPa ~ 106kPa
Temperature in the water inlet of water-cooling equipment is not higher than 25°C.
Delivery and store environment: This equipment should be stored in a
room where the relative humidity is 10% ~ 93%, atmospheric pressure is 70kPa ~ 106kPa, and the temperature is -20°C ~ +55°C.
* Pump tube: less than 8 sterilizer on cycles is highly recommended
* Size of main unit: 300 mmx280 mmx128mm
* Weight of main unit: 2.8kg
* Type of protection against electric shock: Class I equipment
* Degree of protection against electric shock: Type B applied part
Instruction
The cleaning should be performed no later than 24 hours after the opera on. The cleaning can be divided into automated cleaning and manual cleaning. Automated cleaning is preferred if conditions permit.
Automated Cleaning
The cleaner is proved to be valid by CE certification accordance with EN ISO 15883.
* There should be a flushing connector connected to the inner cavity of the product.
* The cleaning procedure is suitable for the products, and the flushing period is sufficient.
* Do not clean the handpiece with ultrasound.
It is recommended to use a washer-disinfector in accordance with EN ISO 15883. For the specific procedure, please refer to the automated disinfection sec on in the next sec on <Disinfection>.
