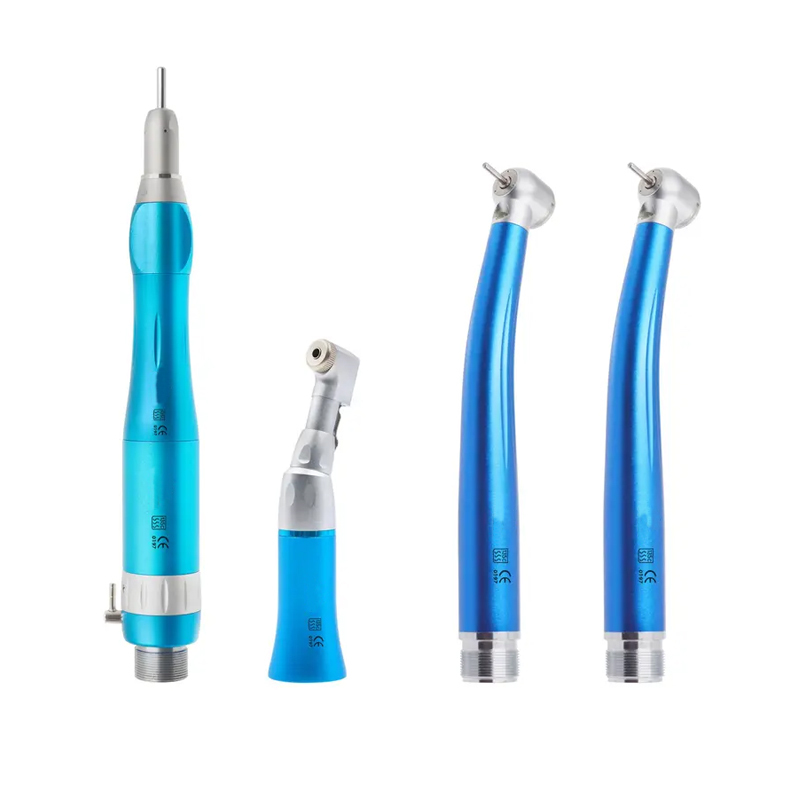

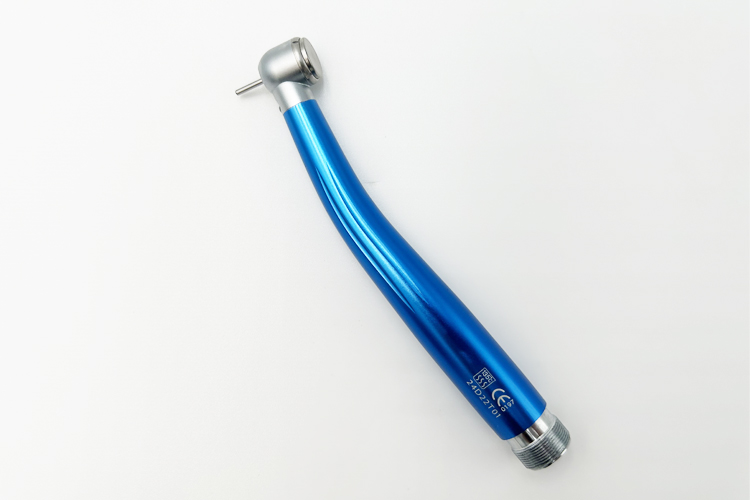

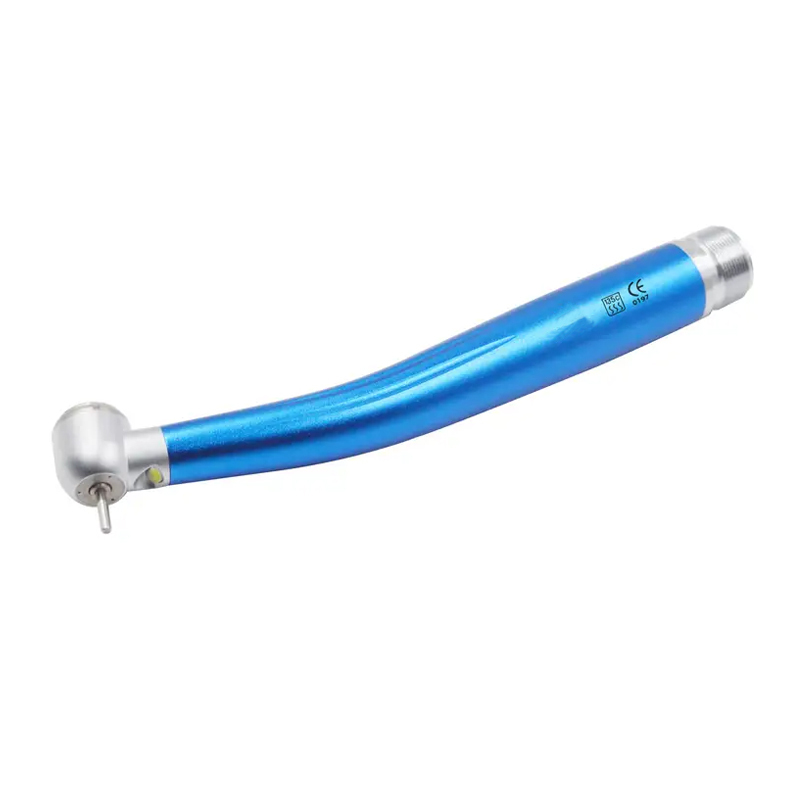

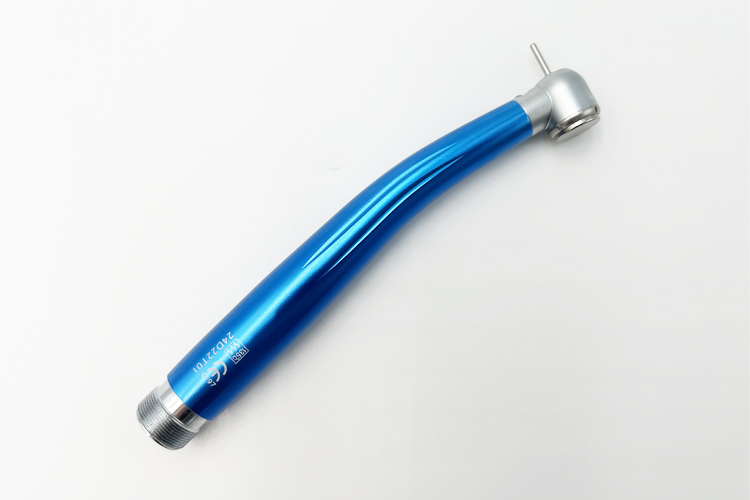

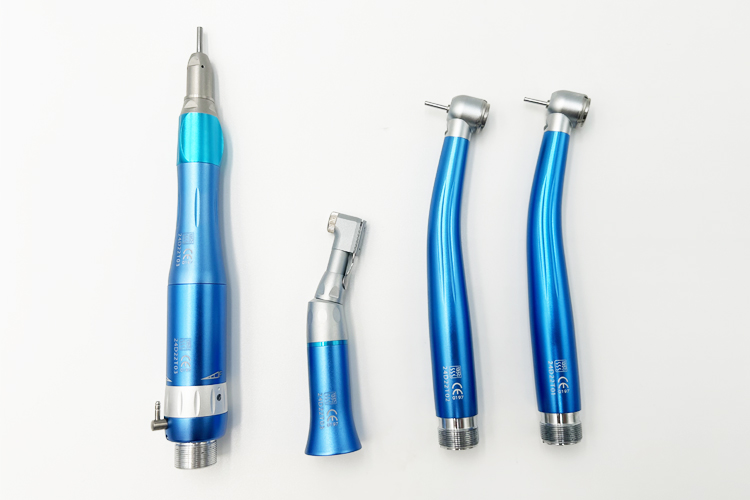

High speed handpieces (2 pcs)
Air pressure: 0.22~0.25Mpa
Water pressure: 198Kpa(2kg)
Rotation speed: 300000-400000 rpm
Head height: 12.00mm
Head diameter: 10.30mm
Chuck: push button
Bur size: 1.60mm standard bur
Noise: ≤65dB

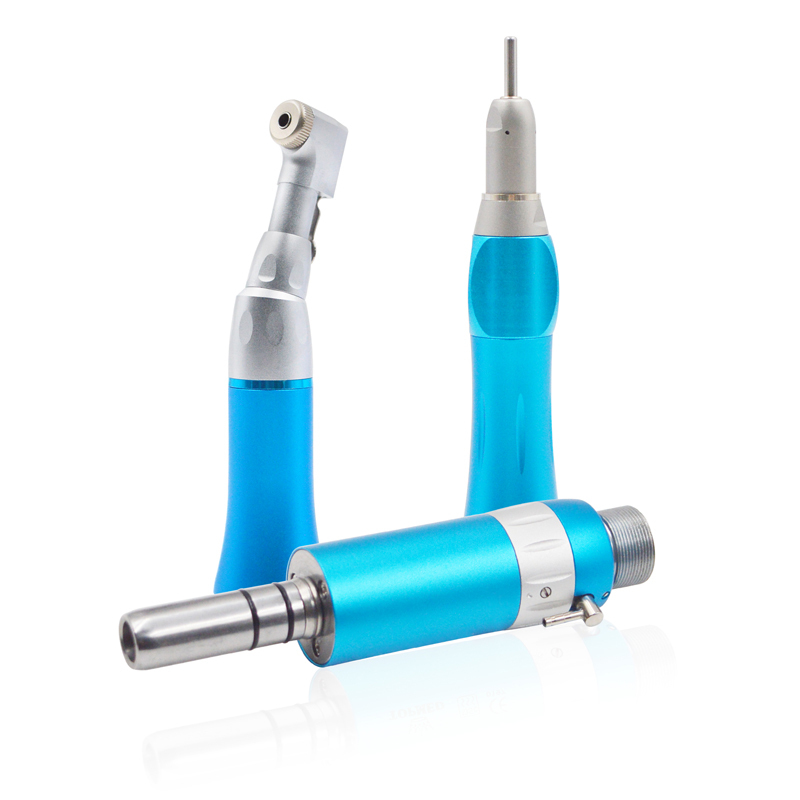

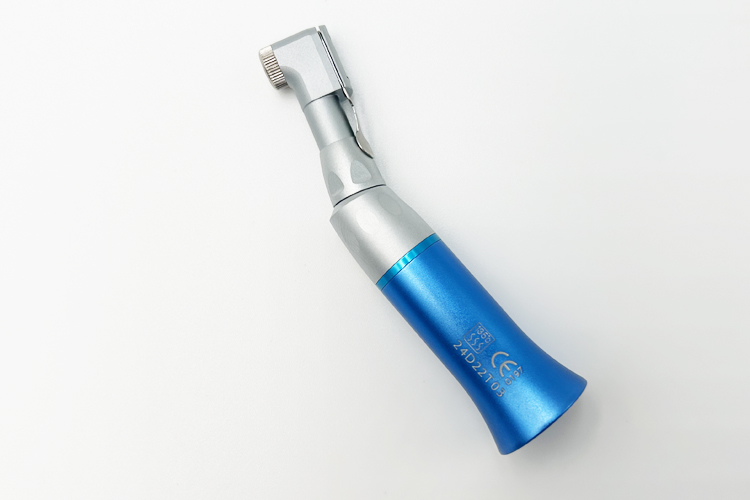

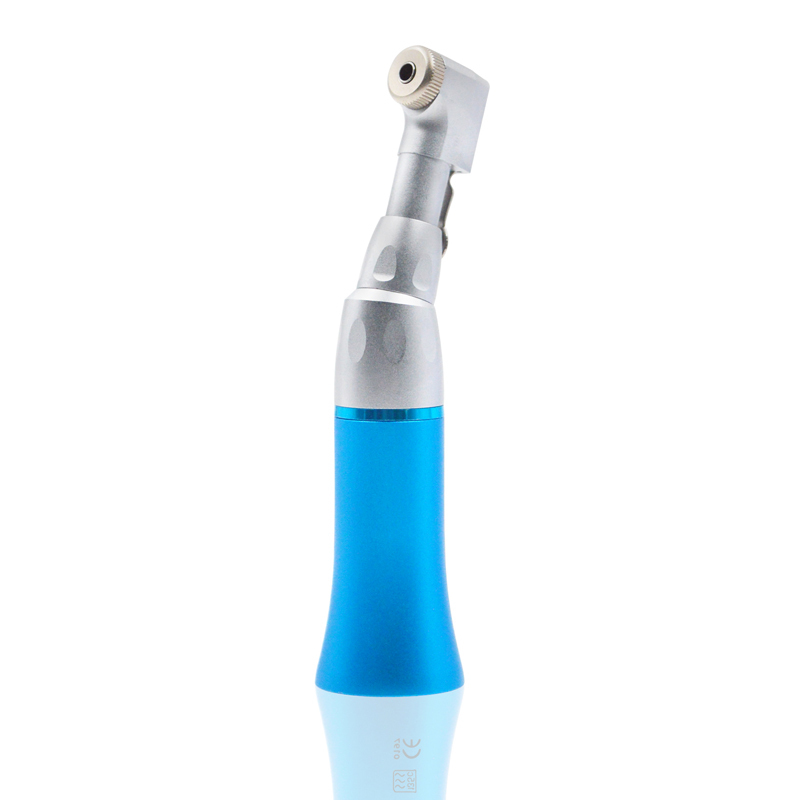

Contra angle handpiece (1pcs)
Low Speed 22,000-27,000 rpm.
The shank of the instrument mounted therein is 2.35 mm
Fastening of the instruments with a turning latch
Autoclavable 135°C
For any lab or E-type motors

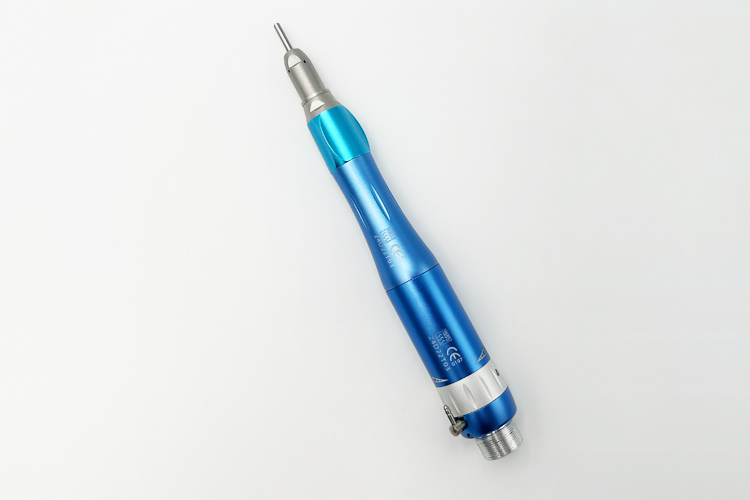

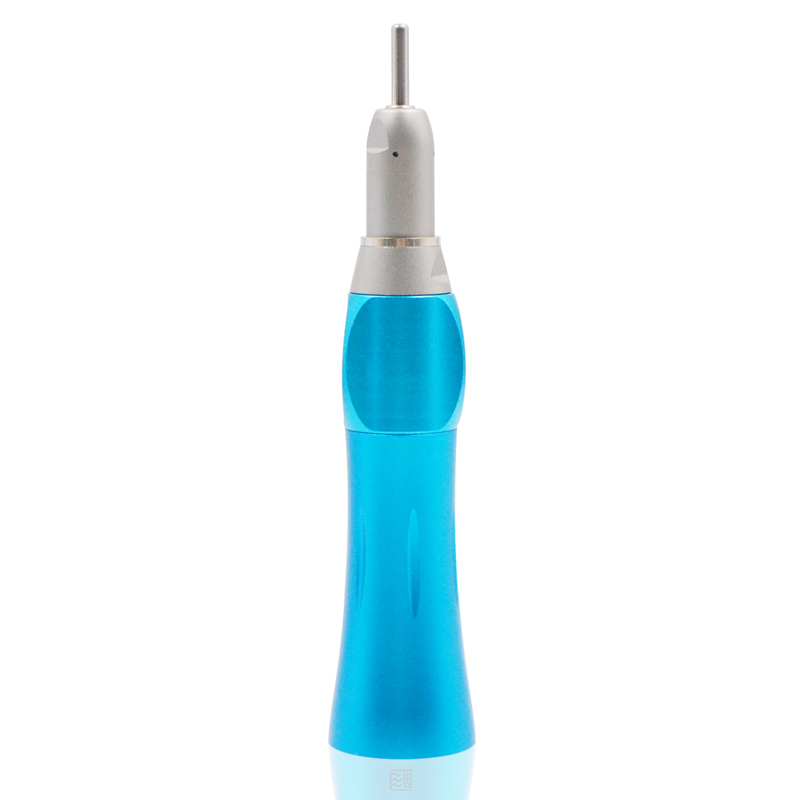

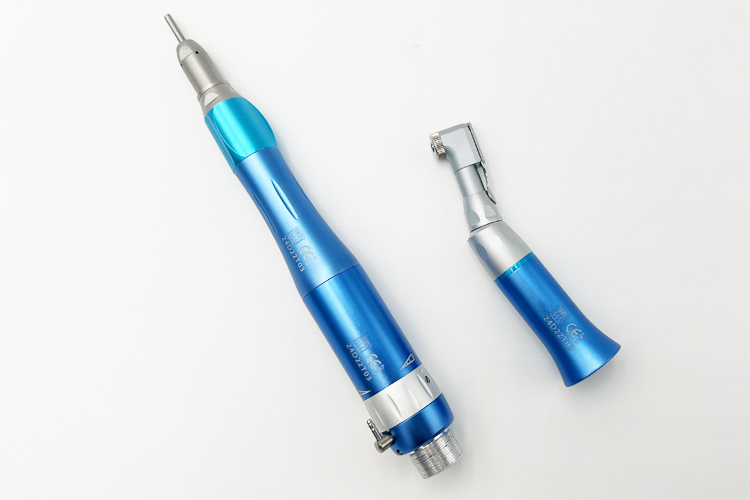

Straight handpiece (1pcs)
Working pressure: 0.3MPa (4-hole); 0.25MPa (2-hole) (Measure meter is installed at the end of air motor to measure the air pressure).
Revolution: about 22000-27000r/min (adjustable between clockwise or anticlockwise)
Noise: ≤68dB
Air consumption: about 56L/min
Ratio: 1:1
Max speed: 25000rpm/min.

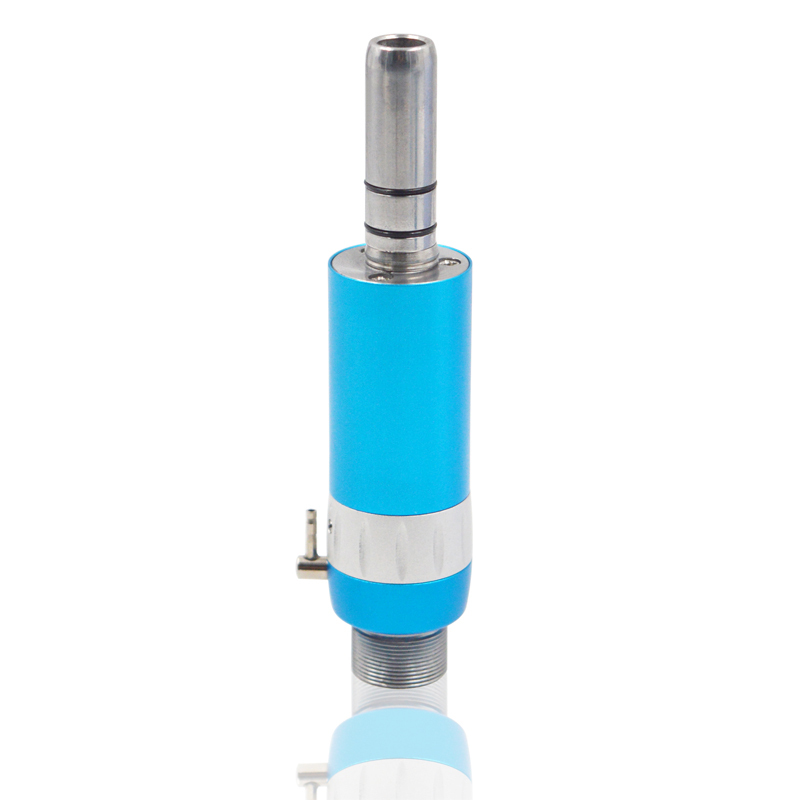

Air motor (1 pcs)
Supply air pressure: 245-392KPa (2.5-4kgf/CM2)
1:1 Direct Drive
Max speed 20000rpm/min
