Technical Data

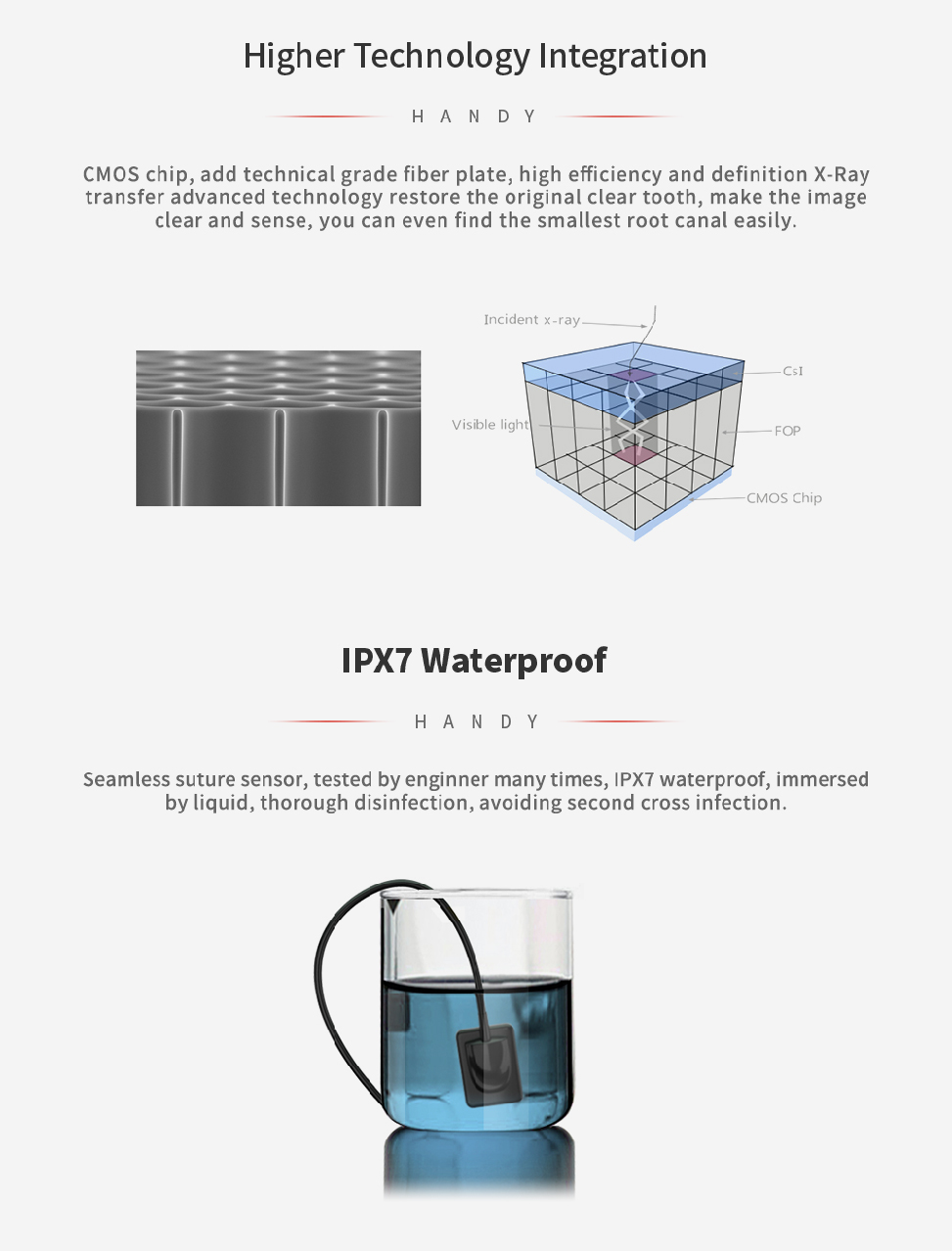

Sensor type: APS CMOS
Scintillator type: DIRECT-GROWTH CESIUM IODIDE
Size 1:
Mechanical Dimension(mm³): 25.0x38.5x4.5

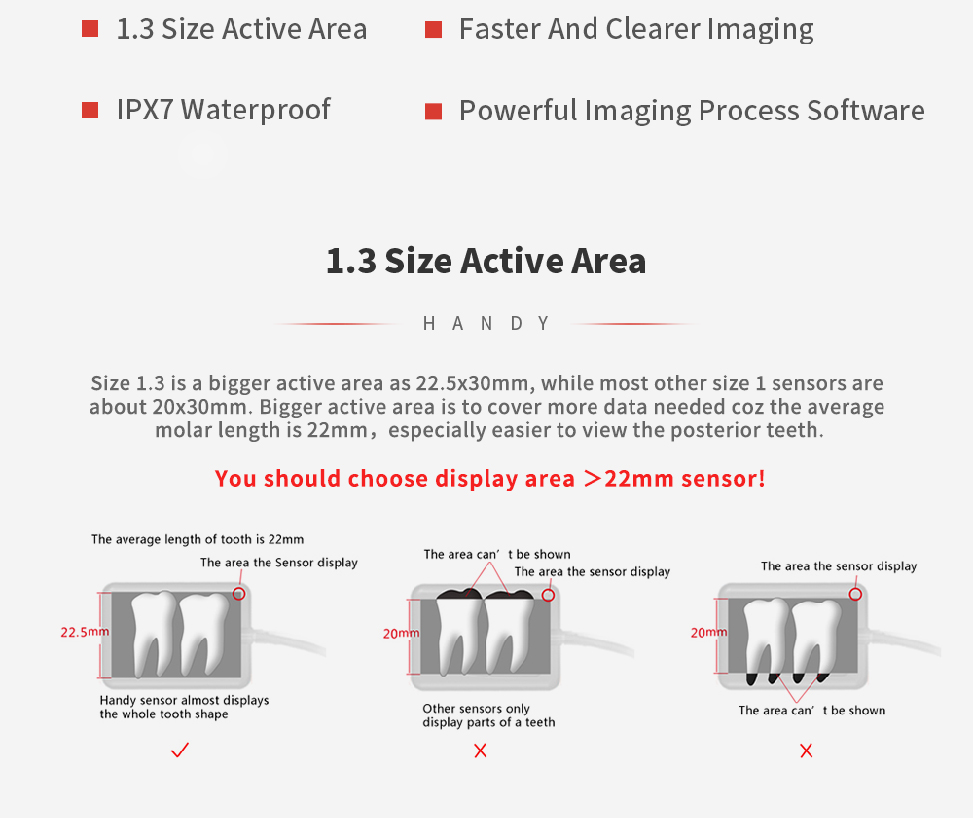

Effective imaging area(mm²): 20x30
Pixel Matrix: (1.5M)1000x1500
Size 2:
Mechanical Dimension(mm³): 31.0x40.0x4.5
Effective imaging area(mm²): 26x36
Pixel Matrix: (2.34M)1300x1800

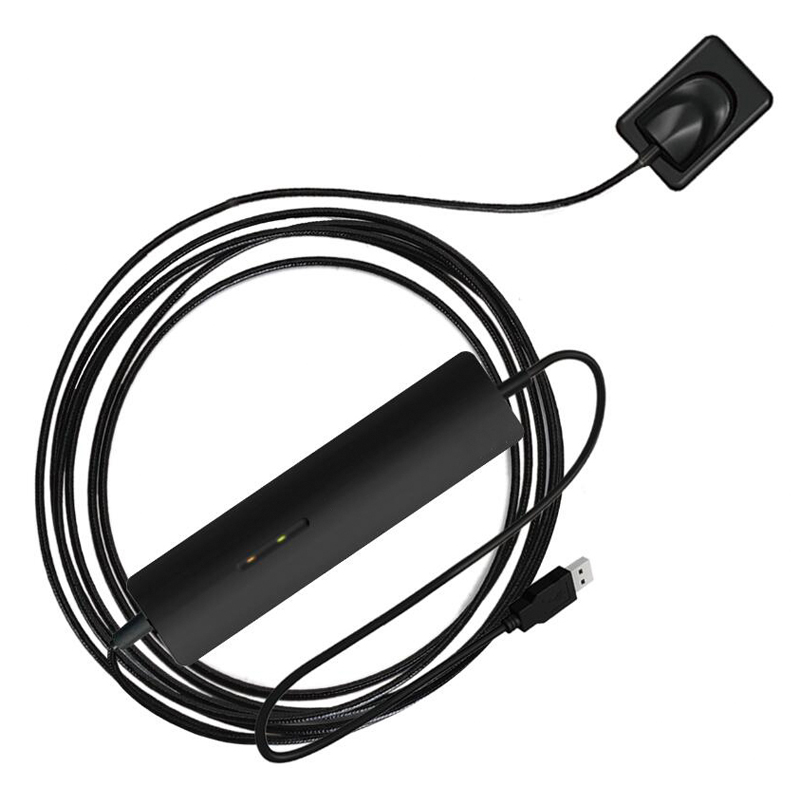

Cord length(m): Standard 3m, Optional 5m
Pixel size(μm): 20
Spatial resolution(Ip/mm):
In theory: 25 Ip/mm;

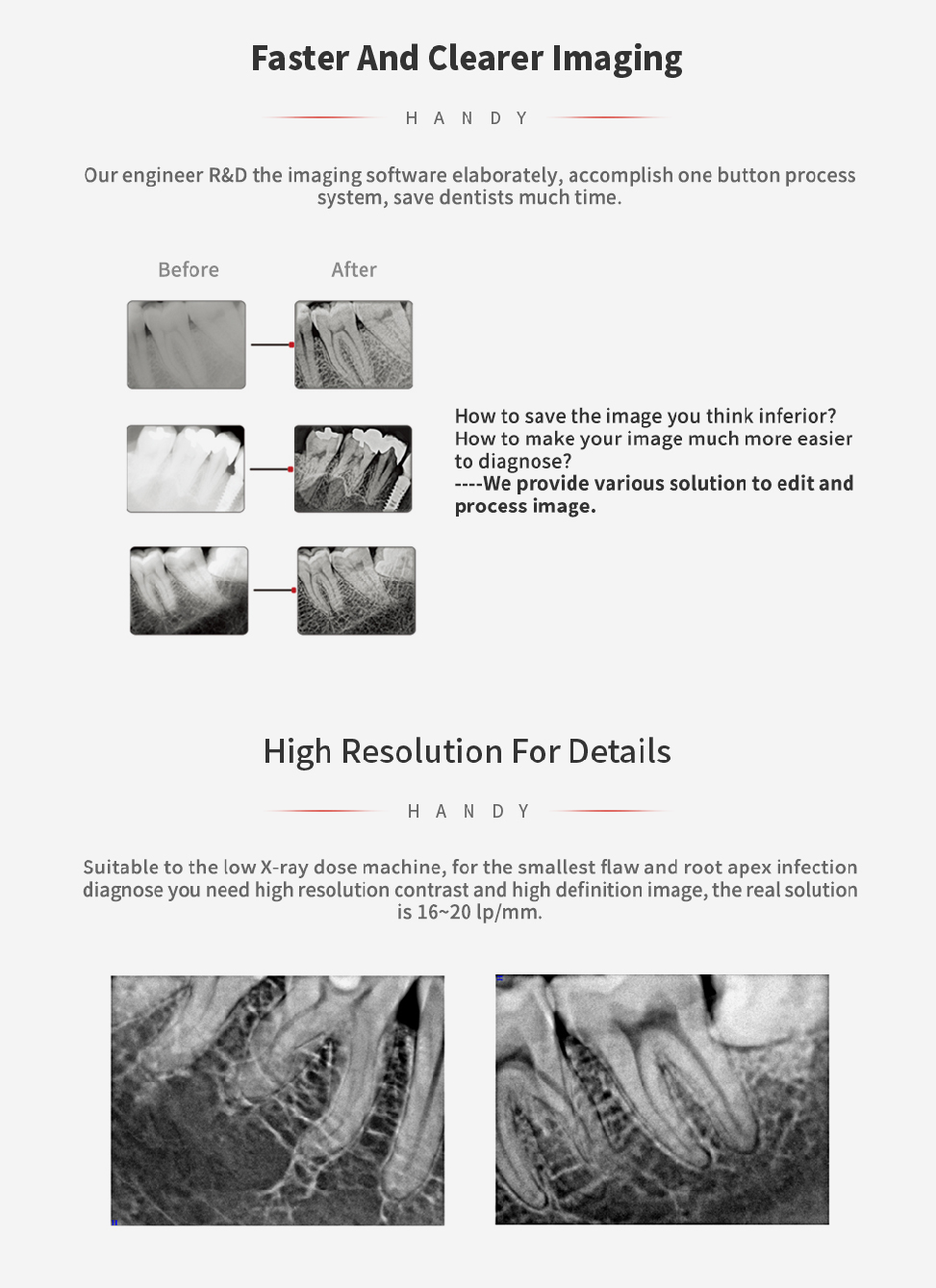

Actual: 14-16 Ip/mm(high sensitivity); 18-20 Ip/mm( high resolution)
Gray scale: 16bits, 65535
Exposure mode: SMART AED mode
Protective grade: IP68 for Soak disinfection

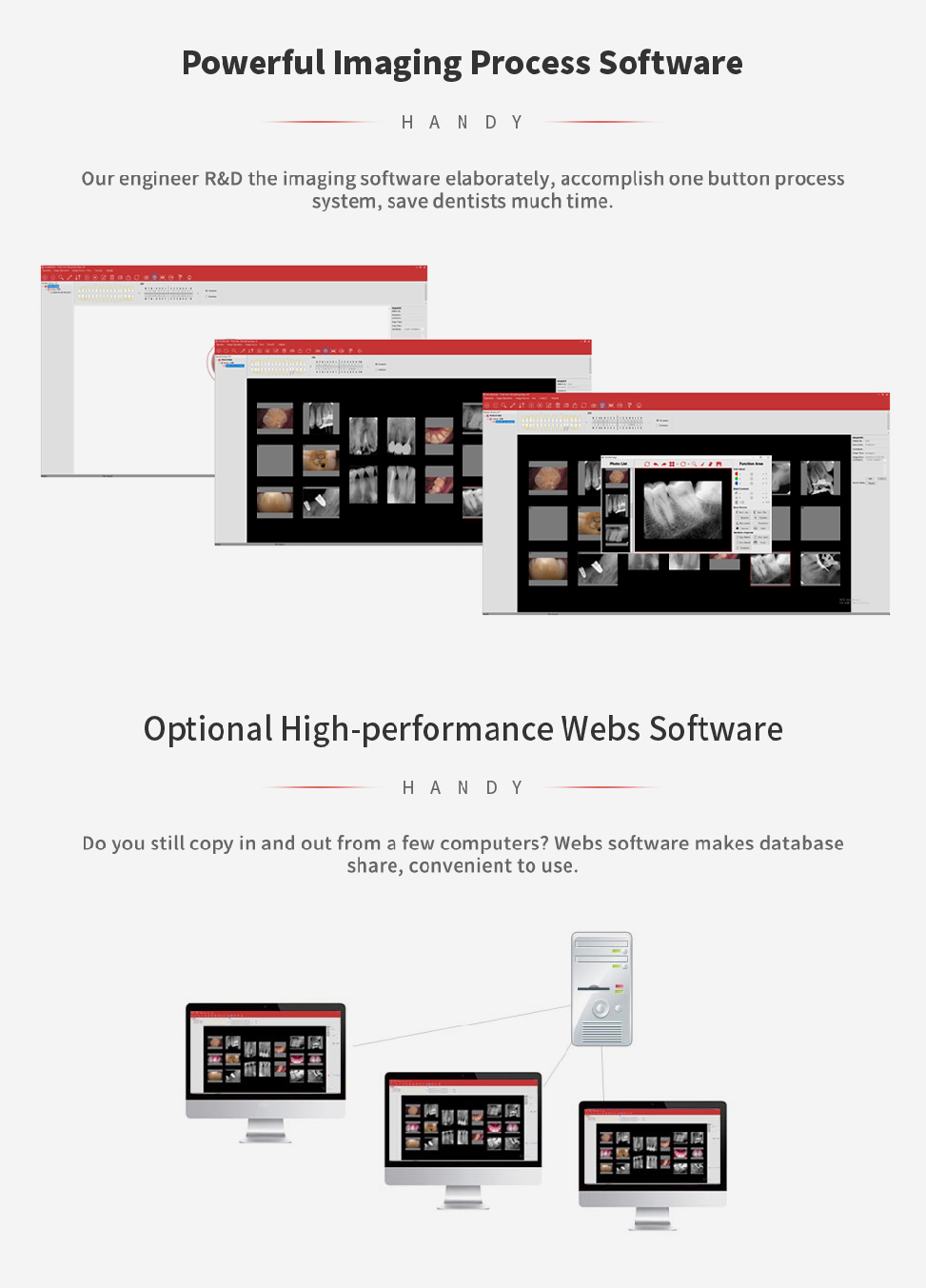

Accessory function: Support the Twain Protocol
Operating System: Windows 7 and above, 32/64bit
Feature
* APS CMOS sensor technology.
* Smart connection technology.
* Suitable for all kinds of X ray machines.
* Direct evaporation scintillator technology.
* Ultra high sensitivity USB 2.0 interface direct connection.

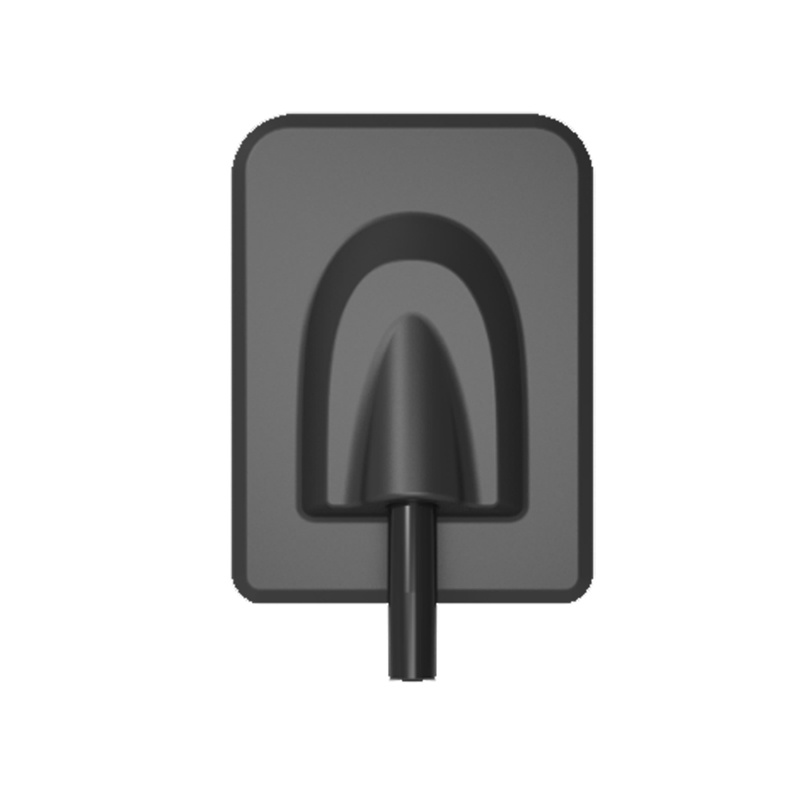

* Thin design, smooth angle, thumb position, humanized design, protection level IP68.
