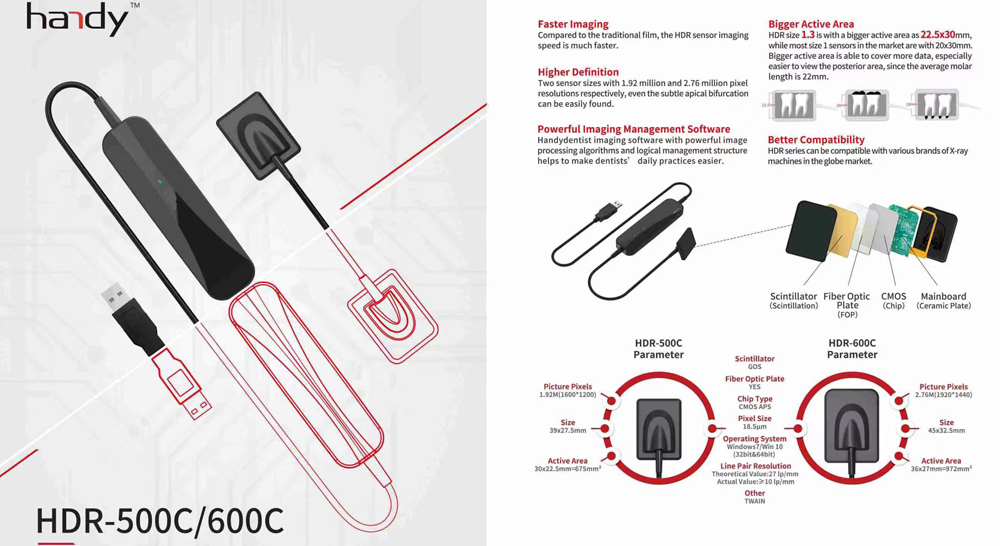

Technical Data
Sensor: CMOS APS
External dimension (mm): 39x27.5 (HDR500C); 45x32.5 (HDR600C);
Sensor Active Area: 30x22.5 (HDR500C); 36x27 (HDR600C);
Cable Length: ≥ 3 m
Scintillator: GOS
Fiber Optic Plate: YES
Pixel Size: 18.5um
Operating System: Windows 7/Win 10 (32bit&64bit)
Line Pair Resolution:
Theoretical Value: 27 lp/mm
Actual Value: ≥10 lp/mm

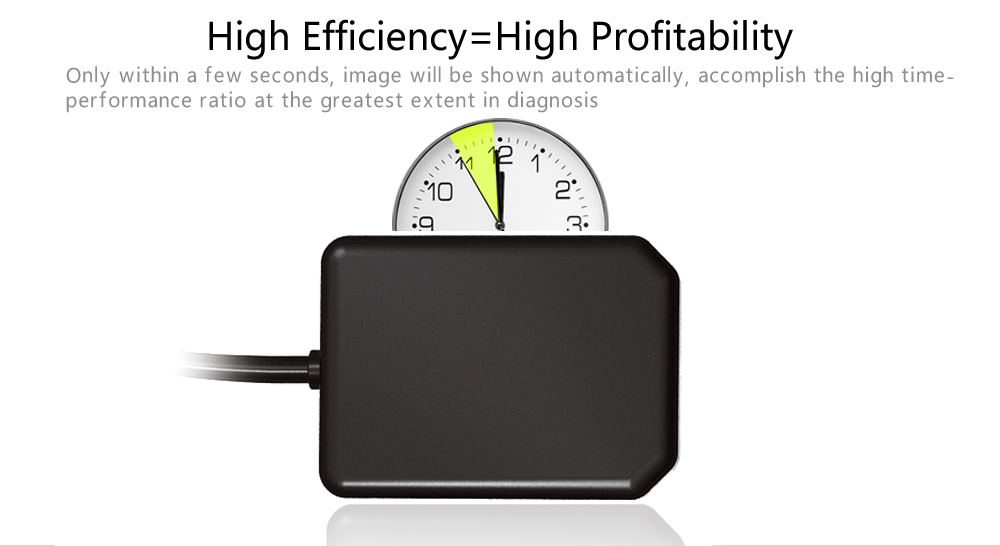

Faster Imaging
Compared to the traditional film, the HDR sensor imaging speed is much faster.
Higher Definition
Two sensor sizes with 1.92 million and 2.76 million pixel resolutions respectively, even the subtle apical bifurcation can be easily found.

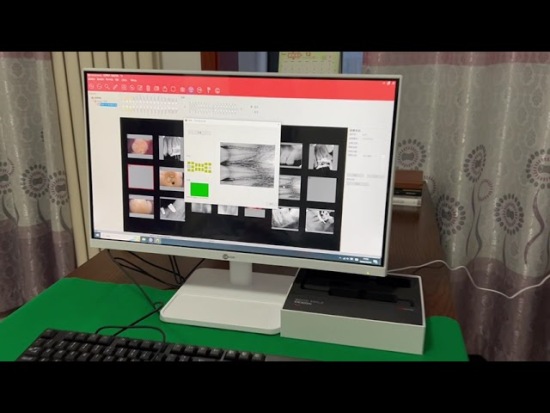

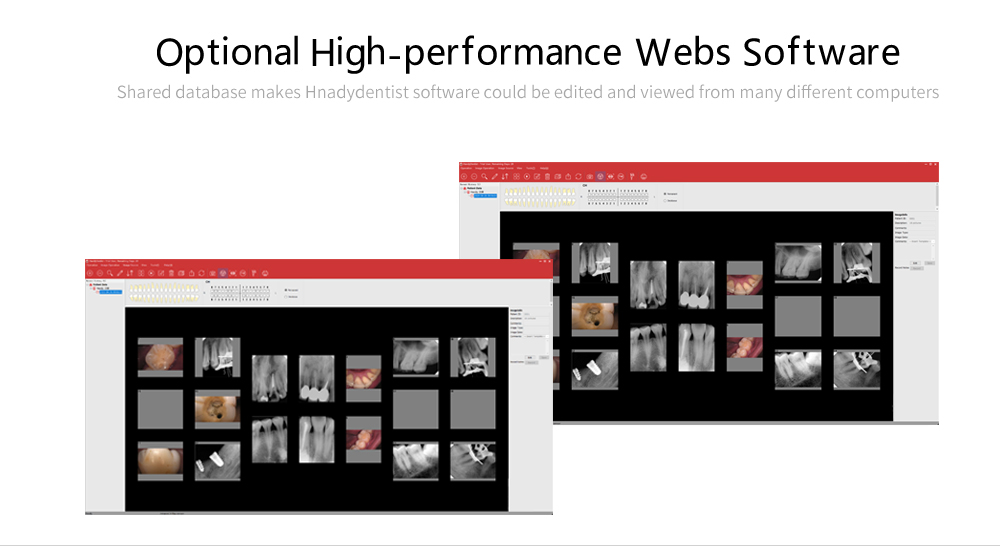

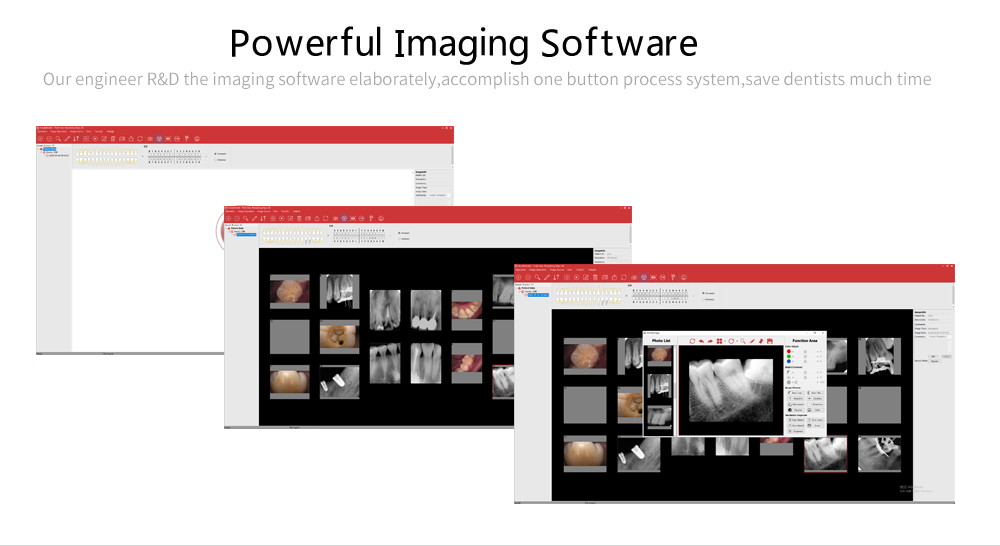

Powerful Imaging Management Software
Handydentist imaging software with powerful image processing algorithms and logical management structure helps to make dentists' daily practices easier.
Bigger Active Area
HDR size 1.3 is with a bigger active area as 22.5x30mm, while most size 1 sensors in the market are with 20x30mm. Bigger active area is able to cover more data, especially easier to view the posterior area, since the average molar length is 22mm.
Better Compatibility
HDR series can be compatible with various brands of X-ray machines in the global market.
